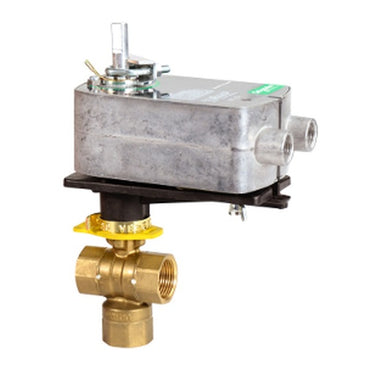

VS-2313-526-9-31 | VB: 1 in, 3W, Ball, NPT, BR, 30.8 cv, No Disc, 50 PSI; Act (MS40-7043): Elec, Prop, SR, NC, 24 VAC, 22-30 VDC, Plen, 35 in-lb, Rotary, N2, SmartX | Schneider Electric

VB: 1 in, 3W, Ball, NPT, BR, 30.8 cv, No Disc, 50 PSI; Act (MS40-7043): Elec, Prop, SR, NC, 24 VAC, 22-30 VDC, Plen, 35 in-lb, Rotary, N2, SmartX

• Body Size: 1 in/li>
• Configuration: 3-Way Mixing
• Type: Ball
• Connection: NPT
• Material Trim: Brass
• Flow Coefficient: 30.8 cv
• Close-Off Pressure: 50 PSI
• Actuator Type: Electric
• Control Signal: Proportional
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
• Loss of Power Type: Spring Return
• Loss of Power Position: Normally closed
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Leads and Connections: 3 ft Plenum
• Torque: 35 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 2

• Valve Body: VB-2313-500-9-31
• Valve Linkage: Linkage included with valve body
• Actuator: MS40-7043
• Actuator Range: SmartX
• Actuator Comment: Actuator mounted right side up
