Documents: VS-2313-526-9-21

Datasheet More Info

VS-2313-526-9-21 | VB: 1 in, 3W, Ball, NPT, BR, 0.4 cv, 50 PSI; Act (MS40-7043): Elec, Prop, 4-20 mAdc. SR, NC, 24 VAC, 22-30 VDC, Plen, 35 in-lb, Rotary, N2 | Schneider Electric

Brand: Schneider ElectricSKU: VS-2313-526-9-21

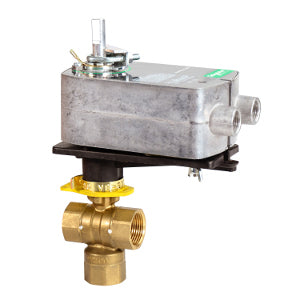

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VS-2313-526-9-21

Jump to: Overview & Specifications Reviews

Overview Details for VS-2313-526-9-21

VB: 1 in, 3W, Ball, NPT, BR, 0.4 cv, 50 PSI; Act (MS40-7043): Elec, Prop, 4-20 mAdc. SR, NC, 24 VAC, 22-30 VDC, Plen, 35 in-lb, Rotary, N2

Valve Assembly:

Body Size: 1 in/li>
Configuration: 3-Way Mixing
Type: Ball
Connection: NPT
Material Trim: Brass
Flow Coefficient: 0.4 cv
Close-Off Pressure: 50 PSI
Actuator Type: Electric
Control Signal: Proportional
Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
Loss of Power Type: Spring Return
Loss of Power Position: Normally closed
Power Input Voltage: 24 VAC or 22 to 30 VDC
Leads and Connections: 3 ft Plenum
Torque: 35 in-lb
Mechanical Movement: Rotary
Protection Rating: NEMA 2

Assembly Components:

Valve Body: VB-2313-500-9-21
Valve Linkage: Linkage included with valve body
Actuator: MS40-7043
Actuator Range: SmartX
Actuator Comment: Actuator mounted right side up

Product Alert: Not for use with steam.

Specifications

Item Number	VS-2313-526-9-21
Brand	Schneider Electric
Control Input	Modulating
Control Valves Type	Ball Valve
CV / GPM	0.4 Cv
End Switch	No
Housing	NEMA 2
Spring Return	Spring Return
Valve Size	1" - 3 Way
Voltage	24V
