VS-2313-505-9-46 | VB: 1-1/4 in, 3W, Ball, NPT, BR, 34.1 cv, No Disc, 40 PSI; Act (MS41-6043): Elec, Prop, NSR, 24 VAC, Plen, 35 in-lb, Rotary, N2, SmartX | Schneider Electric

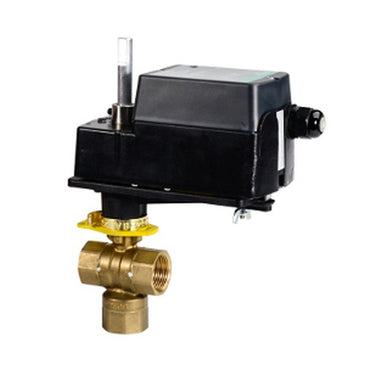

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VS-2313-505-9-46
Overview
Details for VS-2313-505-9-46
VB: 1-1/4 in, 3W, Ball, NPT, BR, 34.1 cv, No Disc, 40 PSI; Act (MS41-6043): Elec, Prop, NSR, 24 VAC, Plen, 35 in-lb, Rotary, N2, SmartX
Valve Assembly:- Body Size: 1-1/4 in
- Configuration: 3-Way Mixing
- Type: Ball
- Connection: NPT
- Material Trim: Brass
- Flow Coefficient: 34.1 cv
- Close-Off Pressure: 40 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 0 to 10 VDC
- Loss of Power Type: Non-Spring Return
- Loss of Power Position: Fail in place
- Power Input Voltage: 24 VAC
- Leads and Connections: 3 ft Plenum
- Torque: 70 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2
- Valve Body: VB-2313-500-9-46
- Valve Linkage: Linkage included with valve body
- Actuator: MS41-6043
- Actuator Range: SmartX
Product Alert: Not for use with steam. Full Port Model without characterizing disc.
Specifications
| Item Number | VS-2313-505-9-46 |
| Brand | Schneider Electric |
| Control Input | Modulating |
| Control Valves Type | Ball Valve |
| CV / GPM | 34.1 Cv |
| End Switch | No |
| Housing | NEMA 2 |
| Spring Return | Non-Spring Return |
| Valve Size | 1.25" - 3 Way |
| Voltage | 24V |
