VS-2313-505-9-03 | VB: 1/2 in, 3W, Ball, NPT, BR, 1 cv, No Steam, 50 PSI; Act (MS41-6043): Elec, Prop, NSR, 24 VAC, Plen, 35 in-lb, Rotary, N2, SmartX | Schneider Electric

Brand: Schneider ElectricSKU: VS-2313-505-9-03

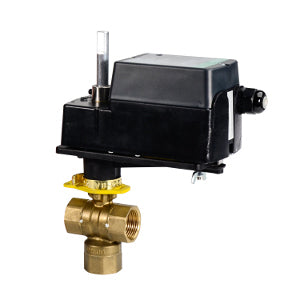

Schneider Electric | VS-2313-505-9-03
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VS-2313-505-9-03
Jump to: Overview & Specifications Reviews

Overview Details for VS-2313-505-9-03

VB: 1/2 in, 3W, Ball, NPT, BR, 1 cv, No Steam, 50 PSI; Act (MS41-6043): Elec, Prop, NSR, 24 VAC, Plen, 35 in-lb, Rotary, N2, SmartX

Valve Assembly:
  • Body Size: 1/2 in
  • Configuration: 3-Way Mixing
  • Type: Ball
  • Connection: NPT
  • Material Trim: Brass
  • Flow Coefficient: 1 cv
  • Close-Off Pressure: 50 PSI
  • Actuator Type: Electric
  • Control Signal: Proportional
  • Control Signal Range: 0 to 10 VDC
  • Loss of Power Type: Non-Spring Return
  • Loss of Power Position: Fail in place
  • Power Input Voltage: 24 VAC
  • Leads and Connections: 3 ft Plenum
  • Torque: 35 in-lb
  • Mechanical Movement: Rotary
  • Protection Rating: NEMA 2
Assembly Components:
  • Valve Body: VB-2313-500-9-03
  • Valve Linkage: Linkage included with valve body
  • Actuator: MS41-6043
  • Actuator Range: SmartX

Product Alert: Not for use with steam.

Specifications

Item Number VS-2313-505-9-03
Brand Schneider Electric
Control Input Modulating
Control Valves Type Ball Valve
CV / GPM 0.99 Cv
End Switch No
Housing NEMA 2
Spring Return Non-Spring Return
Valve Size 0.5" - 3 Way
Voltage 24V
