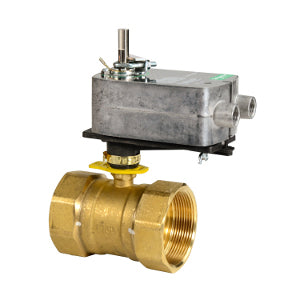

VS-2253-536-9-85 | VB: 3 in, 2W, Ball, NPT, SS, 145 cv, 70 PSI; Act (MS40-7043): Elec, Prop, 4-20 mAdc. SR, NO, 24 VAC, 22-30 VDC, Plen, 35 in-lb, Rotary, N2 | Schneider Electric

VB: 3 in, 2W, Ball, NPT, SS, 145 cv, 70 PSI; Act (MS40-7043): Elec, Prop, 4-20 mAdc. SR, NO, 24 VAC, 22-30 VDC, Plen, 35 in-lb, Rotary, N2

• Body Size: 3 in
• Configuration: 2-Way
• Type: Ball
• Connection: NPT
• Material Trim: Stainless Steel
• Flow Coefficient: 145 cv
• Close-Off Pressure: 70 PSI
• Actuator Type: Electric
• Control Signal: Proportional
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
• Loss of Power Type: Spring Return
• Loss of Power Position: Normally open
• Power Input Voltage: 20 to 30 VDC
• Leads and Connections: 3 ft Plenum
• Torque: 30 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 2

• Valve Body: VB-2253-500-9-85
• Valve Linkage: Linkage included with valve body
• Actuator: MS40-7043
• Actuator Range: SmartX
• Actuator Comment: Actuator mounted left side up
