VS-2253-536-9-11 | VB: 3/4 in, 2W, Ball, NPT, SS, 0.31 cv, 130 PSI; Act (MS40-7043): Elec, Prop, 4-20 mAdc. SR, NO, 24 VAC, 22-30 VDC, Plen, 35 in-lb, Rotary, N2 | Schneider Electric

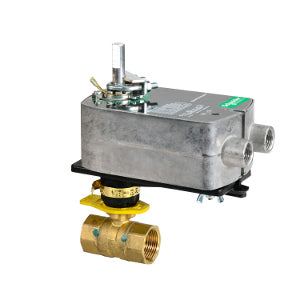

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VS-2253-536-9-11
Overview
Details for VS-2253-536-9-11
VB: 3/4 in, 2W, Ball, NPT, SS, 0.31 cv, 130 PSI; Act (MS40-7043): Elec, Prop, 4-20 mAdc. SR, NO, 24 VAC, 22-30 VDC, Plen, 35 in-lb, Rotary, N2
Valve Assembly:- Body Size: 3/4 in
- Configuration: 2-Way
- Type: Ball
- Connection: NPT
- Material Trim: Stainless Steel
- Flow Coefficient: 0.31 cv
- Close-Off Pressure: 130 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally open
- Power Input Voltage: 24 VAC or 22 to 30 VDC
- Leads and Connections: 3 ft Plenum
- Torque: 35 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2
- Valve Body: VB-2253-500-9-11
- Valve Linkage: Linkage included with valve body
- Actuator: MS40-7043
- Actuator Range: SmartX
- Actuator Comment: Actuator mounted left side up
Product Alert: Not for use with steam.
Specifications
Item Number | VS-2253-536-9-11 |
Brand | Schneider Electric |
Control Input | Modulating |
Control Valves Type | Ball Valve |
CV / GPM | 0.31 Cv |
End Switch | No |
Housing | NEMA 2 |
Spring Return | Spring Return |
Valve Size | 0.75" - 2 Way |
Voltage | 24V |
