VS-2253-506-9-66 | VB: 2 in, 2W, Ball, NPT, SS, 210 cv, No Steam, 70 PSI; Act (MS41-6083): Elec, Prop, NSR, 24 VAC, Plen, 70 in-lb, Rotary, N2, SmartX | Schneider Electric

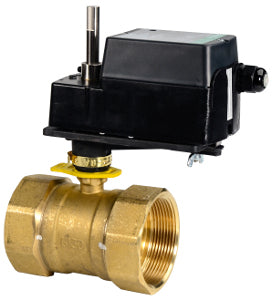

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VS-2253-506-9-66
Overview
Details for VS-2253-506-9-66
VB: 2 in, 2W, Ball, NPT, SS, 210 cv, No Steam, 70 PSI; Act (MS41-6083): Elec, Prop, NSR, 24 VAC, Plen, 70 in-lb, Rotary, N2, SmartX
Valve Assembly:- Body Size: 2 in
- Configuration: 2-Way
- Type: Ball
- Connection: NPT
- Material Trim: Stainless Steel
- Flow Coefficient: 210 cv
- Close-Off Pressure: 70 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 0 to 10 VDC
- Loss of Power Type: Non-Spring Return
- Loss of Power Position: Fail in place
- Power Input Voltage: 24 VAC
- Leads and Connections: 3 ft Plenum
- Torque: 70 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2
- Valve Body: VB-2253-500-9-66
- Valve Linkage: Linkage included with valve body
- Actuator: MS41-6083
- Actuator Range: SmartX
Product Alert: Not for use with steam.
Specifications
Item Number | VS-2253-506-9-66 |
Brand | Schneider Electric |
Control Input | Modulating |
Control Valves Type | Ball Valve |
CV / GPM | 210.01 Cv |
End Switch | No |
Housing | NEMA 2 |
Spring Return | Non-Spring Return |
Valve Size | 2" - 2 Way |
Voltage | 24V |
