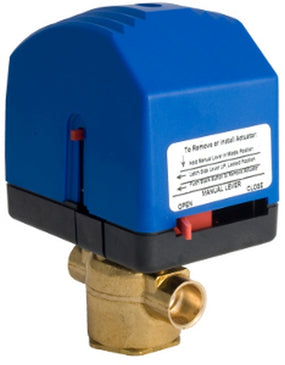

VM2213T23A00T | Erie PopTop, Zone Valve Assemblie, 1/2 in, 2-Way, Sweat, Brass, 4 cv, 35 PSI, Floating, Spring Return, Normally Opened, 24 VAC, Time-out, NEMA 1 | Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VM2213T23A00T
Documents and manuals
Schneider Electric VM2213T23A00T Documents
Overview
Details for VM2213T23A00T
Erie PopTop, Zone Valve Assemblie, 1/2 in, 2-Way, Sweat, Brass, 4 cv, 35 PSI, Floating, Spring Return, Normally Opened, 24 VAC, Time-out, NEMA 1
Valve Assembly:- Body Size: 1/2 in
- Configuration: 2-Way
- Type: Zone
- Connection: Sweat
- Material Trim: Brass
- Flow Coefficient: 4 cv
- Control Media: Glycol 25 to 60% and Water
- Product Line: Schneider Electric
- Product Range: Erie PopTop
- Product Series: VM2
- Valve Body: VM2213
- Valve Linkage: None, tool-less connection
- Actuator: AT23A00T
- Actuator Range: Erie PopTop
Product Alert: Not for use with steam The Erie™ Modulating PopTop™ Series valve actuator assemblies are designed for closed hydronic heating and cooling systems. The Modulating PopTop is used to control fluid flow in fan coil units, VAV reheat, unit ventilators, AHUs and radiant applications. The Modulating PopTop Proportional (P) type is compatible with any 0 to 10 Vdc or 4 to 20 mA signal with jumper selectable operating range and action resulting in precise positioning. The floating (T) type is compatible with any 24 Vac three-wire signal when three minute time-out logic resides in the valve actuator or system controller. The Modulating PopTop valve assemblies allow the actuator to be snapped onto, or off from, the valve body. The actuator can be mounted after the valve body has been installed into the system without the need for linkages or calibration. Available in standard (non-spring return) and spring return modulating actuators. The two-way spring return modulating actuators are provided in either normally open or normally closed operation. The three-way valves are available in normally closed operation only. Valve body reversal provides normally open flow for three-way valve bodies.
Specifications
Item Number | VM2213T23A00T |
Brand | Schneider Electric |
Control Input | Floating Point |
Control Valves Type | Zone Valve |
CV / GPM | 4 Cv |
End Switch | No |
Housing | NEMA 1 |
Spring Return | Spring Return |
Valve Size | 0.5" - 2 Way |
Voltage | 24V |
