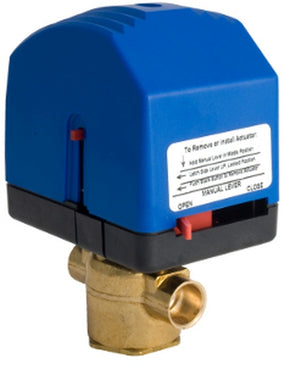

VM2211T23A00T | Erie PopTop, Zone Valve Assemblie, 1/2 in, 2-Way, Sweat, Brass, 1 cv, 50 PSI, Floating, Spring Return, Normally Opened, 24 VAC, Time-out, NEMA 1 | Schneider Electric

Erie PopTop, Zone Valve Assemblie, 1/2 in, 2-Way, Sweat, Brass, 1 cv, 50 PSI, Floating, Spring Return, Normally Opened, 24 VAC, Time-out, NEMA 1

Valve Assembly:

• Body Size: 1/2 in
• Configuration: 2-Way
• Type: Zone
• Connection: Sweat
• Material Trim: Brass
• Flow Coefficient: 1 cv
• Control Media: Glycol 25 to 60% and Water
• Product Line: Schneider Electric
• Product Range: Erie PopTop
• Product Series: VM2

Product Alert: Not for use with steam

Close-Off Pressure: 50 PSI

Actuator Type: Electric

Control Signal: Floating

Loss of Power Type: Spring Return

Loss of Power Position: Normally open

Power Input Voltage: 24 VAC

Leads and Connections: No Leads

Mechanical Movement: Rotary

Additional Features: Time-out

Protection Rating: NEMA 1

Assembly Components:

• Valve Body: VM2211
• Valve Linkage: None, tool-less connection
• Actuator: AT23A00T
• Actuator Range: Erie PopTop

Product Alert: Not for use with steam The Modulating PopTop Proportional (P) type is compatible with any 0 to 10 Vdc or 4 to 20 mA signal with jumper selectable operating range and action resulting in precise positioning. The floating (T) type is compatible with any 24 Vac three-wire signal when three minute time-out logic resides in the valve actuator or system controller. The Modulating PopTop valve assemblies allow the actuator to be snapped onto, or off from, the valve body. The actuator can be mounted after the valve body has been installed into the system without the need for linkages or calibration. Available in standard (non-spring return) and spring return modulating actuators. The two-way spring return modulating actuators are provided in either normally open or normally closed operation. The three-way valves are available in normally closed operation only. Valve body reversal provides normally open flow for three-way valve bodies
