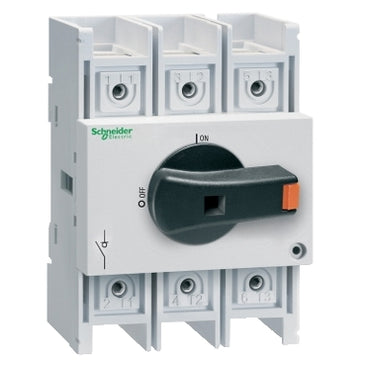

VLS3P100R2 | TeSys VLS Body switch disconnector, 3 poles, 100 A, on DIN rail | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VLS3P100R2
Overview
Details for VLS3P100R2
TeSys VLS Body switch disconnector, 3 poles, 100 A, on DIN rail
TeSys VLS Body switch disconnector, 3 Poles, 3 NO, 100 A, 690 V AC 50/60 Hz, on DIN rail These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 100A disconnect switch has 3 normally open poles and mounts on DIN rail. Per UL and CSA this this disconnect switch has a 5 HP rating at 120 VAC and a 10 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 30 HP rating at 200 to 208 VAC and 240 VAC, a 50 HP rating at 480 VAC and 600 VAC three phase. Per UL508A this this disconnect switch has up to a 50 kA at 600 V short circuit current rating (SCCR) with a 100A Type J fuse maximum. Per IEC requirements, this disconnect switch has a 55 kW rating at 400 V, a 45 kW rating at 500 V and a 45 kW rating at 690V three phase. The screw clamp terminals will accept 10 mm solid or 16 mm stranded wire. The clamps will also accept from 12 AWG to 1 AWG wire. This disconnect switch is 3.94 inches tall, 2.75 inches wide and 2.95 inches deep. The switch weighs 0.80 lbs. There are many handles and accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is UL Listed per UL98, CSA certified per CSA 22.2 and meets IEC 60947-3 requirements.Specifications
- Range
- TeSys
- Product Name
- TeSys VARIO LS
- Device Short Name
- VLS3P
- Product Type
- Switch body
- Device Composition
- Handle;Switch
- Mounting Support
- Back DIN rail
- Mounting Method
- By clips back
- Performance Level
- High performance
- Number of Poles
- 3P
- Contact Type and Composition
- 3 NO
- Color
- Gray
- [Ue] UL Rated Operational Voltage
- 600 V AC 50/60 Hz UL 508
- [Ue] IEC Rated Operational Voltage
- 690 V AC 50/60 Hz
- UL Maxium Horsepower Ratings
- 30 hp 200/208 V AC;30 hp 240 V AC;50 hp 480 V AC;50 hp 600 V AC;5 hp 120 V AC;10 hp 240 V AC
- IEC Rated Operational Power in W
- 55 kW 400 V AC-23A);45 kW 500 V AC-23A);45 kW 690 V AC-23A)
- [Ie] Rated Operational Current
- 100 A Ue: 600 V UL98;100 A AC-21A Ue: 400 V;100 A AC-21A Ue: 500 V;100 A AC-21A Ue: 690 V;100 A AC-22A Ue: 400 V;100 A AC-22A Ue: 500 V;100 A AC-22A Ue: 690 V;100 A AC-23A Ue: 400 V;80 A AC-23A Ue: 500 V;47 A AC-23A Ue: 690 V
- [Ith] Conventional Free Air Thermal Current
- 100 A 131 °F (55 °C)
- [Ithe] Conventional Enclosed Thermal Current
- 100 A
- Making Capacity ( I Rms)
- 150 A 690 V AC-21A;300 A 690 V AC-22A;1000 A 690 V AC-23A
- Breaking Capacity
- 150 A 690 V AC-21A);300 A 690 V AC-22A);800 A 690 V AC-23A)
- SCCR
- Fuse J 100 A maximum: 50 kA at 600 V AC
- Rated Conditional Short Circuit Current
- 50 kA 400 V 100 A gG
- [Icm] Rated Short Circuit Making Capacity
- 3550 A 690 V
- [Icw] Rated Short Time Withstand Current
- 2500 A 690 V 1 s
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Suitability for Isolation
- Yes
- Network Type
- AC
- Network Frequency
- 50/60 Hz
- Intermittent Duty Class
- Class 120 - 60 %
- Control Type
- Rotary handle
- Rotary Handle Mounting Style
- Direct
- Handle Color
- Black
- Handle Front Plate Color
- Grey
- Rotary Handle Padlocking
- 1 padlock 0.16 in (4 mm)
- Marking
- 0 - 1
- Mechanical Durability
- 30000 cycles
- Electrical Durability
- 30000 cycles AC-21
- UL Wire Size
- AWG 12...AWG 1 copper
- IEC Terminal Connection
- Power circuit screw clamp terminals 0.08 in² (50 mm²) solid;Power circuit screw clamp terminals 0.11 in² (70 mm²) flexible - without cable end
- Tightening Torque
- Power circuit 44.25…53.10 lbf.in (5…6 N.m) screw clamp terminals
- Height
- 2.95 in (75 mm)
- Width
- 2.76 in (70 mm)
- Depth
- 3.94 in (100 mm)
- Product Weight
- 0.80 lb(US) (0.365 kg)
- Standards
- UL98;CSA C22.2 No 4;IEC 60947-3
- Product Certifications
- cULus;GL
- Degree of Protection
- IP20 conforming to IEC 60529
- Mechanical Robustness
- Vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6;Shocks 11 ms Ea 15 gn) IEC 60068-2-27
- Ambient Air Temperature for Operation
- -13…131 °F (-25…55 °C)
- Fire Resistance
- 1760 °F (960 °C) IEC 60695-2-11
- Compatibility Code
- VLS
- Category
- 21734-TESYS VLS DISCONNECT SWITCHES
- Discount Schedule
- CP1
- GTIN
- 3606481156495
- Returnability
- Yes
- Country of origin
- IT
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.15 in (8.000 cm)
- Package 1 Width
- 3.35 in (8.500 cm)
- Package 1 Length
- 4.72 in (12.000 cm)
- Package 1 Weight
- 0.90 lb(US) (0.410 kg)
