VK4-8223-652-5-16 | VB: 6 in, 2W, Globe, FLG, UC, BR, 370 cv, 125 PSI; Act (MK-6911): Pneu, 2Pos/Prop, 5-10 PSIG, SR, NC, Air NPT, Linear, N1, PP | Schneider Electric
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Schneider ElectricSKU: VK4-8223-652-5-16

Web Price:

$3,518.47
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships via FREIGHT
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

Email

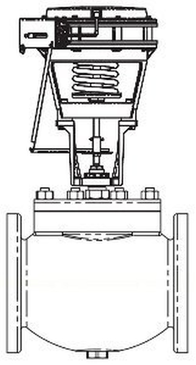

VK4-8223-652-5-16 | VB: 6 in, 2W, Globe, FLG, UC, BR, 370 cv, 125 PSI; Act (MK-6911): Pneu, 2Pos/Prop, 5-10 PSIG, SR, NC, Air NPT, Linear, N1, PP | Schneider Electric

Schneider Electric | VK4-8223-652-5-16
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VK4-8223-652-5-16
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Schneider Electric VK4-8223-652-5-16 Documents

Datasheet More Info

Overview

Details for VK4-8223-652-5-16

VB: 6 in, 2W, Globe, FLG, UC, BR, 370 cv, 125 PSI; Act (MK-6911): Pneu, 2Pos/Prop, 5-10 PSIG, SR, NC, Air NPT, Linear, N1, PP

Valve Assembly:
  • Body Size: 6 in
  • Configuration: 2-Way
  • Type: Globe
  • Connection: Flanged
  • Stem Flow Action: Stem up A closed
  • Material Trim: Brass
  • Flow Coefficient: 370 cv
  • Close-Off Pressure: 125 PSI
  • Actuator Type: Pneumatic
  • Control Signal: 2-Position (On/Off), Proportional
  • Control Spring Range: 5 to 10 PSIG
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Normally closed
  • Leads and Connections: 1/8 in Air NPT
  • Mechanical Movement: Linear
  • Protection Rating: NEMA 1
Assembly Components:
  • Valve Body: VB-8223-0-5-16
  • Valve Range: Balanced Plug Technology
  • Valve Linkage: AV-497
  • Actuator: MK-6911
  • Actuator Comment: Comes with a positive positioner (AK-42309-500)
  • Positive Positioner: AK-42309-500

Specifications

Item Number VK4-8223-652-5-16
Brand Schneider Electric
Control Input Modulating
Control Valves Type Globe Valve
CV / GPM 370 Cv
End Switch No
Housing NEMA 1
Spring Return Spring Return
Valve Size 6" - 2 Way
Voltage
