VF-8213-596-5-13 | VB: 3 in, 2W, Globe, FLG, UO, BR, 85 cv, 125 PSI; Act (MF61-7203): Elec, Float, SR, NO, 24 VAC/VDC, 22-30 VDC, App, 220 lbf | Schneider Electric

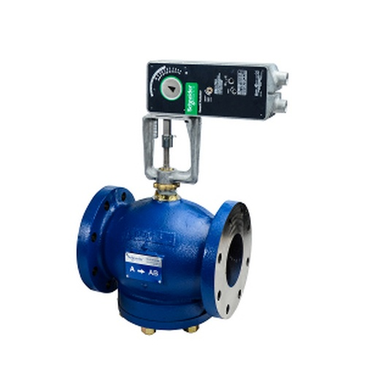

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VF-8213-596-5-13
Overview
Details for VF-8213-596-5-13
VB: 3 in, 2W, Globe, FLG, UO, BR, 85 cv, 125 PSI; Act (MF61-7203): Elec, Float, SR, NO, 24 VAC/VDC, 22-30 VDC, App, 220 lbf
Valve Assembly:- Body Size: 3 in
- Configuration: 2-Way
- Type: Globe
- Connection: Flanged
- Stem Flow Action: Stem up A open
- Material Trim: Brass
- Flow Coefficient: 85 cv
- Close-Off Pressure: 125 PSI
- Actuator Type: Electric
- Control Signal: Floating
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally open
- Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
- Leads and Connections: 3 ft Appliance
- Force: 220 lbf
- Mechanical Movement: Linear
- Protection Rating: NEMA 2
- Valve Body: VB-8213-0-5-13
- Valve Range: Balanced Plug Technology
- Valve Linkage: None, tool-less connection
- Actuator: MF61-7203
- Actuator Range: SmartX Actuator
Specifications
| Item Number | VF-8213-596-5-13 |
| Brand | Schneider Electric |
| Control Input | Floating Point |
| Control Valves Type | Globe Valve |
| CV / GPM | 85.01 Cv |
| End Switch | No |
| freeship | upsground |
| Housing | NEMA 1 |
| Spring Return | Spring Return |
| Valve Size | 3" - 2 Way |
| Voltage | 24V |
