VF-2313-831-9-11 | VB: 3/4 in, 3W, Ball, NPT, BR, 0.4 cv, No Steam, 50 PSI; Act (MF4D-8033-100): Elec, Float, SR, NC, 24 VAC/20-30 VDC, Plen, 30 in-lb, Rotary, N2 | Schneider Electric

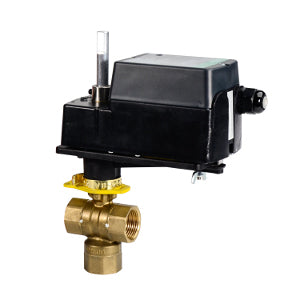

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VF-2313-831-9-11
Overview Details for VF-2313-831-9-11
VB: 3/4 in, 3W, Ball, NPT, BR, 0.4 cv, No Steam, 50 PSI; Act (MF4D-8033-100): Elec, Float, SR, NC, 24 VAC/20-30 VDC, Plen, 30 in-lb, Rotary, N2
Valve Assembly:- Body Size: 3/4 in
- Configuration: 3-Way Mixing
- Type: Ball
- Connection: NPT
- Material Trim: Brass
- Flow Coefficient: 0.4 cv
- Close-Off Pressure: 50 PSI
- Actuator Type: Electric
- Control Signal: Floating
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally closed
- Power Input Voltage: 24 VAC or 20 to 30 VDC
- Leads and Connections: 3 ft Plenum
- Torque: 30 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2
- Valve Body: VB-2313-500-9-11
- Valve Linkage: Linkage included with valve body
- Actuator: MF4D-8033-100
- Actuator Range: SmartX
Product Alert: Not for use with steam.
Specifications
| Item Number | VF-2313-831-9-11 |
| Brand | Schneider Electric |
| Control Input | Floating Point |
| Control Valves Type | Ball Valve |
| CV / GPM | 0.4 Cv |
| End Switch | No |
| Housing | NEMA 1 |
| Spring Return | Spring Return |
| Valve Size | 0.75" - 3 Way |
| Voltage | 24V |
