VF-2253-536-9-13 | VB: 3/4 in, 2W, Ball, NPT, SS, 1.2 cv, No Steam, 130 PSI; Act (MF40-7043): Elec, Float, SR, 24 VAC/VDC, Plen, 35 in-lb, Rotary, N2 | Schneider Electric

Brand: Schneider ElectricSKU: VF-2253-536-9-13
Schneider Electric | VF-2253-536-9-13

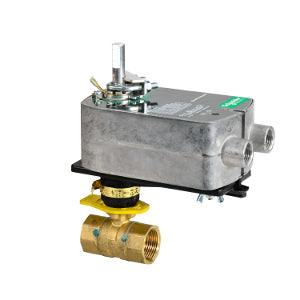

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VF-2253-536-9-13
Jump to: Overview & Specifications Reviews

Overview Details for VF-2253-536-9-13

VB: 3/4 in, 2W, Ball, NPT, SS, 1.2 cv, No Steam, 130 PSI; Act (MF40-7043): Elec, Float, SR, 24 VAC/VDC, Plen, 35 in-lb, Rotary, N2

Valve Assembly:
  • Body Size: 3/4 in
  • Configuration: 2-Way
  • Type: Ball
  • Connection: NPT
  • Material Trim: Stainless Steel
  • Flow Coefficient: 1.2 cv
  • Close-Off Pressure: 130 PSI
  • Actuator Type: Electric
  • Control Signal: Floating
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Normally open
  • Power Input Voltage: 24 VAC or 22 to 30 VDC
  • Leads and Connections: 3 ft Plenum
  • Torque: 35 in-lb
  • Mechanical Movement: Rotary
  • Protection Rating: NEMA 2
Assembly Components:
  • Valve Body: VB-2253-500-9-13
  • Valve Linkage: Linkage included with valve body
  • Actuator: MF40-7043
  • Actuator Range: SmartX
  • Actuator Comment: Actuator mounted left side up

Product Alert: Not for use with steam.

Specifications

Item Number VF-2253-536-9-13
Brand Schneider Electric
Control Input Floating Point
Control Valves Type Ball Valve
CV / GPM 1.2 Cv
End Switch No
Housing NEMA 2
Spring Return Spring Return
Valve Size 0.75" - 2 Way
Voltage 24V
