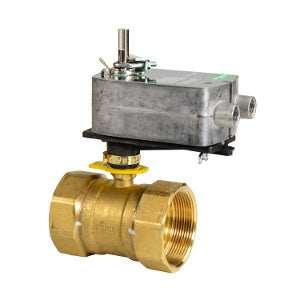

VF-2253-526-9-82 | VB: 3 in, 2W, Ball, NPT, SS, 63 cv, No Steam, 70 PSI; Act (MF40-7043): Elec, Float, SR, NC, 24 VAC, 22-30 VDC, Plen, 35 in-lb, Rotary, N2, SmartX | Schneider Electric

VB: 3 in, 2W, Ball, NPT, SS, 63 cv, No Steam, 70 PSI; Act (MF40-7043): Elec, Float, SR, NC, 24 VAC, 22-30 VDC, Plen, 35 in-lb, Rotary, N2, SmartX

• Body Size: 3 in
• Configuration: 2-Way
• Type: Ball
• Connection: NPT
• Material Trim: Stainless Steel
• Flow Coefficient: 63 cv
• Close-Off Pressure: 70 PSI
• Actuator Type: Electric
• Control Signal: Floating
• Loss of Power Type: Spring Return
• Loss of Power Position: Normally closed
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Leads and Connections: 3 ft Plenum
• Torque: 35 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 2

• Valve Body: VB-2253-500-9-82
• Valve Linkage: Linkage included with valve body
• Actuator: MF40-7043
• Actuator Range: SmartX
• Actuator Comment: Actuator mounted right side up
