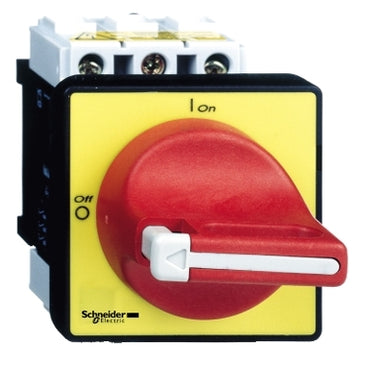

VCF2 | TeSys Vario - emergency stop switch disconnector - 40 A - on door | Square D by Schneider Electric

Brand: Square DSKU: VCF2

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VCF2

Jump to: Overview & Specifications Reviews

Overview Details for VCF2

TeSys Vario - emergency stop switch disconnector - 40 A - on door

VCF2 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 15kW@400V AC-23. Door mounting with 4 screw fixing, it provides a red & yellow operator with IP65 protection. VCF2 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 15kW@400V AC-23. It consists of a V2 Vario switch body and a padlockable red & yellow operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V2 and a red & yellow operator, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ2), neutral (VZ11), earthing (VZ14), auxiliary (VZ7, VZ20).

Specifications

Range: TeSys
Product Name: TeSys VARIO
Device Short Name: VCF
Product Type: Emergency stop switch disconnector
Device Composition: Switch;Handle
Mounting Support: Handle door;Switch door
Mounting Method: By 4 screws handle
Performance Level: High performance
Number of Poles: 3P
Contact Type and Composition: 3 NO
[Ue] IEC Rated Operational Voltage: 690 V AC 50/60 Hz
IEC Rated Operational Power in W: 11 kW 690 V AC-3);15 kW 690 V AC-23A);11 kW 400...415 V AC-3);15 kW 500 V AC-3);18.5 kW 500 V AC-23A);5.5 kW 230...240 V AC-3);7.5 kW 230...240 V AC-23A);15 kW 400...415 V AC-23A)
[Ie] Rated Operational Current: 29 A AC-23 Ue: 400 V
[Ith] Conventional Free Air Thermal Current: 40 A
[Ithe] Conventional Enclosed Thermal Current: 32 A
Making Capacity ( I Rms): 400 A 400 V AC-21A;400 A 400 V AC-22A;400 A 400 V AC-23A
Breaking Capacity: 320 A 400 V AC-21A);320 A 400 V AC-22A);320 A 400 V AC-23A)
Rated Conditional Short Circuit Current: 10 kA 400 V 50 A aM;10 kA 400 V 50 A gG
[Icm] Rated Short Circuit Making Capacity: 1 kA 400 V at Ipeak
[Icw] Rated Short Time Withstand Current: 480 A 400 V 1 s
[Uimp] Rated Impulse Withstand Voltage: 8 kV
Suitability for Isolation: Yes
Network Type: AC;DC
Intermittent Duty Class: 30
Control Type: Rotary handle
Rotary Handle Mounting Style: Direct
Handle Color: Red
Handle Front Plate Color: Yellow
Rotary Handle Padlocking: 1 to 3 padlocks 0.16…0.31 in (4…8 mm)
Marking: 0 - 1
Mechanical Durability: 100000 cycles
Electrical Durability: 100000 cycles AC-21;30000 cycles DC-1...5
IEC Terminal Connection: Power circuit screw clamp terminals 0.02 in² (10 mm²) solid;Power circuit screw clamp terminals 0.01 in² (6 mm²) flexible - with cable end
Tightening Torque: Power circuit 18.59 lbf.in (2.1 N.m) screw clamp terminals
Base Dimension: 60 x 60 mm
Height: 2.91 in (74 mm)
Width: 2.36 in (60 mm)
Product Weight: 0.55 lb(US) (0.25 kg)
Standards: IEC 60947-3
Product Certifications: UL;CCC;GL;CSA;UKCA
Degree of Protection: IP20 conforming to IEC 60529;IP65
Protective Treatment: TC
Mechanical Robustness: Vibrations 10...150 Hz 1 gn) IEC 60068-2-6;Shocks 11 ms 30 Gn) IEC 60068-2-27
Ambient Air Temperature for Operation: -4…122 °F (-20…50 °C)
Fire Resistance: 1760 °F (960 °C) IEC 60695-2-1
Compatibility Code: Main switch disconnector
Category: 21730-V VARIO SWITCH
Discount Schedule: CP1
GTIN: 3389110449358
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.15 in (8 cm)
Package 1 Width: 3.35 in (8.5 cm)
Package 1 Length: 4.72 in (12 cm)
Package 1 Weight: 7.73 oz (219.21 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 24
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 12.54 lb(US) (5.69 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 192
Package 3 Height: 29.53 in (75 cm)
Package 3 Width: 31.50 in (80 cm)
Package 3 Length: 23.62 in (60 cm)
Package 3 Weight: 117.99 lb(US) (53.52 kg)
Warranty: 18 months
