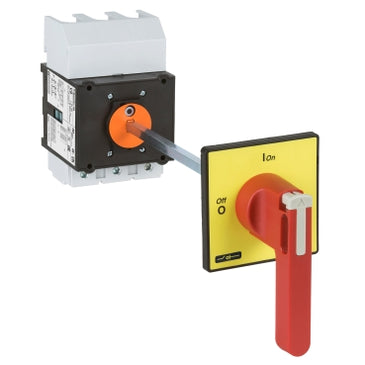

VCCF6 | TeSys Vario - Emergency Stop Switch Disconnector - 175 A - Back of Enclosure | Square D by Schneider Electric

Brand: Square DSKU: VCCF6

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VCCF6

Jump to: Overview & Specifications Reviews

Overview Details for VCCF6

TeSys Vario - Emergency Stop Switch Disconnector - 175 A - Back of Enclosure

VCCF6 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 45kW@400V AC-23. For enclosure back mounting, it provides a red & yellow operator and extension shaft with IP65 protection. VCCF6 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 45kW@400V AC-23. It consists of a V6 Vario switch body to be mounted on the back of an enclosure, an extension shaft, and a padlockable red & yellow operator with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole rotary switch disconnector for back mounting. Composed with a switch body V6, an extension shaft and a red & yellow operator, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 in each side) , neutral (VZ13), earthing (VZ16), auxiliary (VZ7, VZ20).

Specifications

Range: TeSys
Product Name: TeSys VARIO
Device Short Name: VCCF
Product Type: Emergency stop switch disconnector
Device Composition: Handle;Shaft extension;Switch
Mounting Support: Handle door;Switch symmetrical rail;Switch plate
Mounting Method: By 4 screws handle;By clips switch;By screws switch
Performance Level: High performance
Number of Poles: 3P
Contact Type and Composition: 3 NO
[Ue] IEC Rated Operational Voltage: 690 V AC 50/60 Hz
IEC Rated Operational Power in W: 30 kW 230...240 V AC-3);37 kW 400...415 V AC-3);37 kW 690 V AC-3);45 kW 500 V AC-3);45 kW 690 V AC-23A);55 kW 500 V AC-23A);30 kW 230...240 V AC-23A);45 kW 400...415 V AC-23A)
[Ie] Rated Operational Current: 83 A AC-23 Ue: 400 V
[Ith] Conventional Free Air Thermal Current: 175 A
[Ithe] Conventional Enclosed Thermal Current: 140 A
Making Capacity ( I Rms): 1750 A 400 V AC-21A;1750 A 400 V AC-22A;1750 A 400 V AC-23A
Breaking Capacity: 1400 A 400 V AC-21A);1400 A 400 V AC-22A);1400 A 400 V AC-23A)
Rated Conditional Short Circuit Current: 10 kA 400 V 200 A aM;10 kA 400 V 200 A gG
[Icm] Rated Short Circuit Making Capacity: 2.8 kA 400 V at Ipeak
[Icw] Rated Short Time Withstand Current: 2100 A 400 V 1 s
[Uimp] Rated Impulse Withstand Voltage: 8 kV
Suitability for Isolation: Yes
Network Type: AC;DC
Intermittent Duty Class: 30
Control Type: Rotary handle
Rotary Handle Mounting Style: Extended
Handle Color: Red
Handle Front Plate Color: Yellow
Rotary Handle Padlocking: 1 to 3 padlocks 0.16…0.31 in (4…8 mm)
Marking: 0 - 1
Mechanical Durability: 30000 cycles
Electrical Durability: 30000 cycles AC-21;30000 cycles DC-1...5
IEC Terminal Connection: Power circuit screw clamp terminals 0.15 in² (95 mm²) solid;Power circuit screw clamp terminals 0.11 in² (70 mm²) flexible - with cable end
Tightening Torque: Power circuit 200.03 lbf.in (22.6 N.m) screw clamp terminals
Base Dimension: 90 x 90 mm
Height: 4.92 in (125 mm)
Width: 3.54 in (90 mm)
Product Weight: 2.91 lb(US) (1.32 kg)
Standards: IEC 60947-3
Product Certifications: CSA;CCC;GL;UL;UKCA
Degree of Protection: IP20 conforming to IEC 60529;IP65
Protective Treatment: TC
Mechanical Robustness: Vibrations 10...150 Hz 1 gn) IEC 60068-2-6;Shocks 11 ms 30 Gn) IEC 60068-2-27
Ambient Air Temperature for Operation: -4…122 °F (-20…50 °C)
Fire Resistance: 1760 °F (960 °C) IEC 60695-2-1
Compatibility Code: Main switch disconnector
Category: 21730-V VARIO SWITCH
Discount Schedule: CP1
GTIN: 3389110804669
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 11.81 in (30.0 cm)
Package 1 Width: 4.53 in (11.5 cm)
Package 1 Length: 3.94 in (10.0 cm)
Package 1 Weight: 2.80 lb(US) (1.268 kg)
Unit Type of Package 2: S03
Number of Units in Package 2: 4
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 12.22 lb(US) (5.544 kg)
Warranty: 18 months
