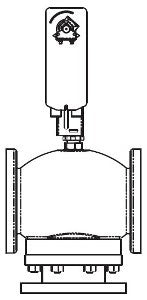

VA-8303-556-5-12 | VB: 2-1/2 in, 3W Mix/Div, Globe, FLG, UC, BR, See doc for cv, 35 PSI; Act (MA41-7153): Elec, 2Pos, SR, 24 VAC/VDC, App, 133 in-lb, Rotary, N1/N2 | Schneider Electric

VB: 2-1/2 in, 3W Mix/Div, Globe, FLG, UC, BR, See doc for cv, 35 PSI; Act (MA41-7153): Elec, 2Pos, SR, 24 VAC/VDC, App, 133 in-lb, Rotary, N1/N2

• Body Size: 2-1/2 in
• Configuration: 3-Way Mixing/Diverting
• Type: Globe
• Connection: Flanged
• Stem Flow Action: Stem up, mixing closed A to AB, diverting closed AB to A
• Material Trim: Brass
• Flow Coefficient: See documentation for cv cv
• Close-Off Pressure: 35 PSI
• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Loss of Power Type: Spring Return
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Leads and Connections: 3 ft Appliance
• Torque: 133 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 1, NEMA 2

• Valve Body: VB-8303-0-5-12
• Valve Range: Balanced Plug Technology
• Valve Linkage: AV-607-1
• Actuator: MA41-7153
• Actuator Range: SmartX Actuator
• Actuator Comment: NEMA 1. NEMA 2 (IEC IP54) with conduit connector in the down position.
