VA-8223-576-5-16 | VB: 6 in, 2W, Globe, FLG, UC, BR, 370 cv, 125 PSI; Act (MA40-7173): Elec, 2Pos, SR, NC, 24 VAC/VDC, 22-30 VDC, App, 150 in-lb, Rotary, N1/N4, SmartX | Schneider Electric

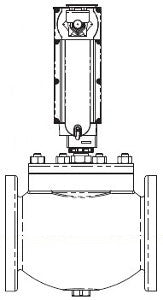

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VA-8223-576-5-16

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric VA-8223-576-5-16 Documents

Datasheet More Info

Overview

Details for VA-8223-576-5-16

VB: 6 in, 2W, Globe, FLG, UC, BR, 370 cv, 125 PSI; Act (MA40-7173): Elec, 2Pos, SR, NC, 24 VAC/VDC, 22-30 VDC, App, 150 in-lb, Rotary, N1/N4, SmartX

Valve Assembly:

Body Size: 6 in
Configuration: 2-Way
Type: Globe
Connection: Flanged
Stem Flow Action: Stem up A closed
Material Trim: Brass
Flow Coefficient: 370 cv
Close-Off Pressure: 125 PSI
Actuator Type: Electric
Control Signal: 2-Position (On/Off)
Loss of Power Type: Spring Return
Loss of Power Position: Normally closed
Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
Leads and Connections: 4 ft Appliance
Torque: 150 in-lb
Mechanical Movement: Rotary
Protection Rating: NEMA 1, NEMA 4

Assembly Components:

Valve Body: VB-8223-0-5-16
Valve Range: Balanced Plug Technology
Valve Linkage: AV-609-1
Actuator: MA40-7173
Actuator Range: SmartX Actuator
Actuator Comment: NEMA 1. NEMA 4 (IEC IP 56) with customer supplied water tight conduit connectors.

Specifications

Item Number	VA-8223-576-5-16
Brand	Schneider Electric
Control Input	On/Off
Control Valves Type	Globe Valve
CV / GPM	370 Cv
End Switch	No
Housing	NEMA 1
Spring Return	Spring Return
Valve Size	6" - 2 Way
Voltage	24V
