VA-8223-576-5-14 | VB: 4 in, 2W, Globe, FLG, UC, BR, 145 cv, 125 PSI; Act (MA40-7173): Elec, 2Pos, SR, NC, 24 VAC/VDC, 22-30 VDC, App, 150 in-lb, Rotary, N1/N4, SmartX | Schneider Electric

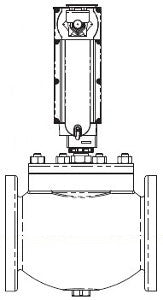

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VA-8223-576-5-14
Overview
Details for VA-8223-576-5-14
VB: 4 in, 2W, Globe, FLG, UC, BR, 145 cv, 125 PSI; Act (MA40-7173): Elec, 2Pos, SR, NC, 24 VAC/VDC, 22-30 VDC, App, 150 in-lb, Rotary, N1/N4, SmartX
Valve Assembly:- Body Size: 4 in
- Configuration: 2-Way
- Type: Globe
- Connection: Flanged
- Stem Flow Action: Stem up A closed
- Material Trim: Brass
- Flow Coefficient: 145 cv
- Close-Off Pressure: 125 PSI
- Actuator Type: Electric
- Control Signal: 2-Position (On/Off)
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally closed
- Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
- Leads and Connections: 4 ft Appliance
- Torque: 150 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 1, NEMA 4
- Valve Body: VB-8223-0-5-14
- Valve Range: Balanced Plug Technology
- Valve Linkage: AV-607-1
- Actuator: MA40-7173
- Actuator Range: SmartX Actuator
- Actuator Comment: NEMA 1. NEMA 4 (IEC IP 56) with customer supplied water tight conduit connectors.
Specifications
Item Number | VA-8223-576-5-14 |
Brand | Schneider Electric |
Control Input | On/Off |
Control Valves Type | Globe Valve |
CV / GPM | 145 Cv |
End Switch | No |
Housing | NEMA 1 |
Spring Return | Spring Return |
Valve Size | 4" - 2 Way |
Voltage | 24V |
