VA-8213-556-5-15 | VB: 5 in, 2W, Globe, FLG, UO, BR, 240 cv, 125 PSI; Act (MA41-7153): Elec, 2Pos, SR, NO, 24 VAC/VDC, 22-30 VDC, App, 133 in-lb, Rotary, N1/N2, SmartX | Schneider Electric

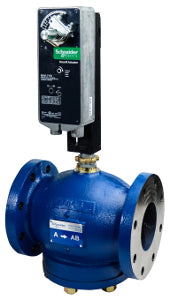

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VA-8213-556-5-15

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric VA-8213-556-5-15 Documents

Datasheet More Info

Overview

Details for VA-8213-556-5-15

VB: 5 in, 2W, Globe, FLG, UO, BR, 240 cv, 125 PSI; Act (MA41-7153): Elec, 2Pos, SR, NO, 24 VAC/VDC, 22-30 VDC, App, 133 in-lb, Rotary, N1/N2, SmartX

Valve Assembly:

Body Size: 5 in
Configuration: 2-Way
Type: Globe
Connection: Flanged
Stem Flow Action: Stem up A open
Material Trim: Brass
Flow Coefficient: 240 cv
Close-Off Pressure: 125 PSI
Actuator Type: Electric
Control Signal: 2-Position (On/Off)
Loss of Power Type: Spring Return
Loss of Power Position: Normally open
Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
Leads and Connections: 3 ft Appliance
Torque: 133 in-lb
Mechanical Movement: Rotary
Protection Rating: NEMA 1, NEMA 2

Assembly Components:

Valve Body: VB-8213-0-5-15
Valve Range: Balanced Plug Technology
Valve Linkage: AV-607-1
Actuator: MA41-7153
Actuator Range: SmartX Actuator
Actuator Comment: NEMA 1. NEMA 2 (IEC IP54) with conduit connector in the down position.

Specifications

Item Number	VA-8213-556-5-15
Brand	Schneider Electric
Control Input	On/Off
Control Valves Type	Globe Valve
CV / GPM	240 Cv
End Switch	No
Housing	NEMA 1
Spring Return	Spring Return
Valve Size	5" - 2 Way
Voltage	24V
