VA-7211-804-4-02 | VB: 1/2 in, 2W, Globe, STR, NPT, UO, BR, 1.3 cv, 250 PSI; Act (MA51-7103-100): Elec, 2Pos, SR, NO, 24 VAC/VDC, 20-30 VDC, Plen, 105 lbf, Linear, N2 | Schneider Electric

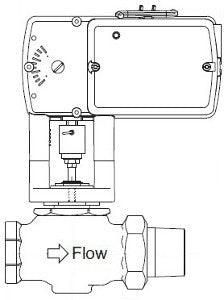

Schneider Electric | VA-7211-804-4-02
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VA-7211-804-4-02

Documents and manuals

Schneider Electric VA-7211-804-4-02 Documents

Overview

Details for VA-7211-804-4-02

VB: 1/2 in, 2W, Globe, STR, NPT, UO, BR, 1.3 cv, 250 PSI; Act (MA51-7103-100): Elec, 2Pos, SR, NO, 24 VAC/VDC, 20-30 VDC, Plen, 105 lbf, Linear, N2

Valve Assembly:
  • Body Size: 1/2 in
  • Configuration: 2-Way
  • Type: Globe
  • Body Pattern: Straightway
  • Connection: NPT
  • Stem Flow Action: Stem up A open
  • Material Trim: Brass
  • Flow Coefficient: 1.3 cv
  • Close-Off Pressure: 250 PSI
  • Actuator Type: Electric
  • Control Signal: 2-Position (On/Off)
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Normally open
  • Power Input Voltage: 24 VAC/VDC, 20 to 30 VDC
  • Leads and Connections: 3 ft Plenum
  • Force: 105 lbf
  • Mechanical Movement: Linear
  • Protection Rating: NEMA 2
Assembly Components:
  • Valve Body: VB-7211-0-4-02
  • Valve Range: Venta
  • Valve Linkage: None, tool-less connection
  • Actuator: MA51-7103-100
  • Actuator Range: SmartX Actuator

Specifications

Item Number VA-7211-804-4-02
Brand Schneider Electric
Control Input On/Off
Control Valves Type Globe Valve
CV / GPM 1.29 Cv
End Switch No
Housing NEMA 1
Spring Return Spring Return
Valve Size 0.5" - 2 Way
Voltage 24V
