VA-2313-536-9-27 | VB: 1 in, 3W Mix, Ball, NPT, BR, 8.6 cv, No Steam, 50 PSI; Act (MA40-7043): Elec, 2Pos, SR, 24 VAC/VDC, App, 35 in-lb, Rotary, N2 | Schneider Electric
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!

Web Price:

$325.92
Availability: This product is currently available to purchase

Contact us for price breaks on large quantities!

Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs. Shipping and Returns Terms
Ship to Estimates
Are you from Chicago?
Yes / No
This item ships to
Change
Cancel


*shipping cost are estimated until you complete your order

Speak With a Technical Expert

Image for Technical Expert

Hours: 9am - 5pm CDT M-F

Call (847) 773-0645 Email Technical Expert

Documents: VA-2313-536-9-27

Datasheet More Info

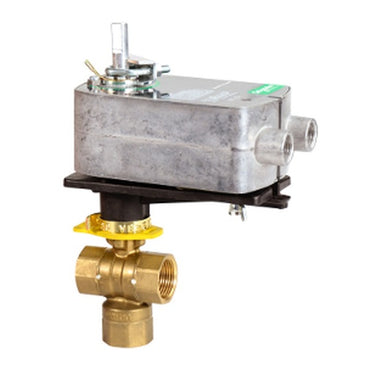

VA-2313-536-9-27 | VB: 1 in, 3W Mix, Ball, NPT, BR, 8.6 cv, No Steam, 50 PSI; Act (MA40-7043): Elec, 2Pos, SR, 24 VAC/VDC, App, 35 in-lb, Rotary, N2 | Schneider Electric

Brand: Schneider ElectricSKU: VA-2313-536-9-27
Schneider Electric | VA-2313-536-9-27
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VA-2313-536-9-27
Jump to: Overview & Specifications Reviews

Overview Details for VA-2313-536-9-27

VB: 1 in, 3W Mix, Ball, NPT, BR, 8.6 cv, No Steam, 50 PSI; Act (MA40-7043): Elec, 2Pos, SR, 24 VAC/VDC, App, 35 in-lb, Rotary, N2

Valve Assembly:
  • Body Size: 1 in/li>
  • Configuration: 3-Way Mixing
  • Type: Ball
  • Connection: NPT
  • Material Trim: Brass
  • Flow Coefficient: 8.6 cv
  • Control Media: Glycol 25-50% and Water
  • Close-Off Pressure: 50PSI
  • Actuator Type: Electric
  • Control Signal: 2-Positio (On/Off)
  • Loss of Power Type: Spring Return
  • Power Input Voltage: 22 to 30 VDC, 24 VAC, 24 VDC
  • Leads and Connections: 3 ft Appliance
  • Torque: 35 in-lb
  • Mechanical Movement: Rotary
  • Protection Rating: NEMA 2
  • Product Line: Schneider Electric
  • Product Range: SmartX Actuator
  • Product Series: Mx4x-7xxx
  • Actuator Use: Dampers, Globe Valves

Assembly Components:
  • Valve Body: VB-2313-500-9-27
  • Actuator: MA40-7043
  • Actuator Range: SmartX Actuator

Product Alert: Not for use with steam

Specifications

Item Number VA-2313-536-9-27
Brand Schneider Electric
Control Input On/Off
Control Valves Type Ball Valve
CV / GPM 8.6 Cv
End Switch No
Housing NEMA 2
Spring Return Spring Return
Valve Size 1" - 3 Way
Voltage 24V
