Documents: VA-2313-526-9-05

Datasheet More Info

VA-2313-526-9-05 | VB: 1/2 in, 3W, Ball, NPT, BR, 4.3 cv, No Steam, 50 PSI; Act (MA40-7043): Elec, 2Pos, SR, NC, 24 VAC, 22-30 VDC, App, 35 in-lb, Rotary, N2, SmartX | Schneider Electric

Brand: Schneider ElectricSKU: VA-2313-526-9-05

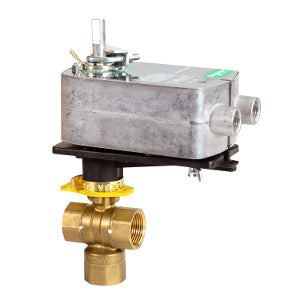

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VA-2313-526-9-05

Jump to: Overview & Specifications Reviews

Overview Details for VA-2313-526-9-05

VB: 1/2 in, 3W, Ball, NPT, BR, 4.3 cv, No Steam, 50 PSI; Act (MA40-7043): Elec, 2Pos, SR, NC, 24 VAC, 22-30 VDC, App, 35 in-lb, Rotary, N2, SmartX

Valve Assembly:

Body Size: 1/2 in
Configuration: 3-Way Mixing
Type: Ball
Connection: NPT
Material Trim: Brass
Flow Coefficient: 4.3 cv
Close-Off Pressure: 50 PSI
Actuator Type: Electric
Control Signal: 2-Position (On/Off)
Loss of Power Type: Spring Return
Loss of Power Position: Normally closed
Power Input Voltage: 24 VAC or 22 to 30 VDC
Leads and Connections: 3 ft Appliance
Torque: 35 in-lb
Mechanical Movement: Rotary
Protection Rating: NEMA 2

Assembly Components:

Valve Body: VB-2313-500-9-05
Valve Linkage: Linkage included with valve body
Actuator: MA40-7043
Actuator Range: SmartX
Actuator Comment: Actuator mounted right side up

Product Alert: Not for use with steam.

Specifications

Item Number	VA-2313-526-9-05
Brand	Schneider Electric
Control Input	On/Off
Control Valves Type	Ball Valve
CV / GPM	4.3 Cv
End Switch	No
Housing	NEMA 2
Spring Return	Spring Return
Valve Size	0.5" - 3 Way
Voltage	24V
