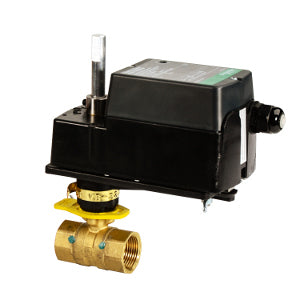

VA-2253-815-9-04 | VB: 1/2 in, 2W, Ball, NPT, SS, 2.6 cv, No Steam, 130 PSI; Act (MA4D-7030): Elec, 2Pos, SR, NO, 120 VAC, App, 30 in-lb, Rotary, N2, SmartX | Schneider Electric

VB: 1/2 in, 2W, Ball, NPT, SS, 2.6 cv, No Steam, 130 PSI; Act (MA4D-7030): Elec, 2Pos, SR, NO, 120 VAC, App, 30 in-lb, Rotary, N2, SmartX

• Body Size: 1/2 in
• Configuration: 2-Way
• Type: Ball
• Connection: NPT
• Material Trim: Stainless Steel
• Flow Coefficient: 2.6 cv
• Close-Off Pressure: 130 PSI
• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Loss of Power Type: Spring Return
• Loss of Power Position: Normally open
• Power Input Voltage: 120 VAC
• Leads and Connections: 3 ft Appliance
• Torque: 30 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 2

• Valve Body: VB-2253-500-9-04
• Valve Linkage: Linkage included with valve body
• Actuator: MA4D-7030
• Actuator Range: SmartX
