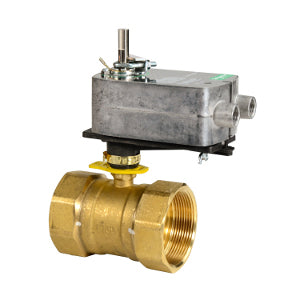

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VA-2253-527-9-73
Documents and manuals
Schneider Electric VA-2253-527-9-73 Documents
Overview
Details for VA-2253-527-9-73
VA-2253-527-9-73
Valve Assembly:- Body Size: 2-1/2 in
- Configuration: 2-Way
- Type: Ball
- Connection: NPT
- Material Trim: Stainless Steel
- Flow Coefficient: 72.3 cv
- Close-Off Pressure: 70 PSI
- Actuator Type: Electric
- Control Signal: 2-Position (On/Off)
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally closed
- Power Input Voltage: 24 VAC or 22 to 30 VDC
- Leads and Connections: 3 ft Appliance
- Torque: 35 in-lb
- Mechanical Movement: Rotary
- Auxiliary Switch: 1 SPDT
- Protection Rating: NEMA 2
- Valve Body: VB-2253-500-9-73
- Valve Linkage: Linkage included with valve body
- Actuator: MA40-7043-501
- Actuator Range: SmartX
- Actuator Comment: Actuator mounted right side up
Product Alert: Not for use with steam.
Specifications
| Item Number | VA-2253-527-9-73 |
| Brand | Schneider Electric |
| Control Input | On/Off |
| Control Valves Type | Ball Valve |
| CV / GPM | 72.3 Cv |
| End Switch | Yes |
| Housing | NEMA 2 |
| Spring Return | Spring Return |
| Valve Size | 2.5" - 2 Way |
| Voltage | 24V |
