VA-2253-527-9-51 | VA-2253-527-9-51 | Schneider Electric

Brand: Schneider ElectricSKU: VA-2253-527-9-51
Schneider Electric | VA-2253-527-9-51

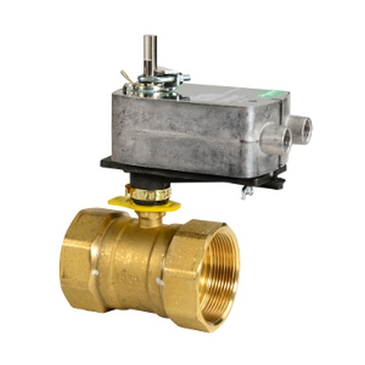

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VA-2253-527-9-51
Jump to: Overview & Specifications Reviews

Overview Details for VA-2253-527-9-51

VA-2253-527-9-51

Valve Assembly:
  • Body Size: 1-1/2 in
  • Configuration: 2-Way
  • Type: Ball
  • Connection: NPT
  • Material Trim: Stainless Steel
  • Flow Coefficient: 22.8 cv
  • Control Media: Glycol 25-50% and Water
  • Close-Off Pressure: 70PSI
  • Actuator Type: Electric
  • Control Signal: 2-Positio (On/Off)
  • Loss of Power Type: Spring Return
  • Power Input Voltage: 22 to 30 VDC, 24 VAC, 24 VDC
  • Leads and Connections: 3 ft Appliance
  • Torque: 35 in-lb
  • Mechanical Movement: Rotary
  • Auxiliary Switch: 1 SPDT
  • Protection Rating: NEMA 2
  • Product Line: Schneider Electric
  • Product Range: SmartX Actuator
  • Product Series: Mx4x-7xxx
  • Actuator Use: Dampers, Globe Valves

Assembly Components:
  • Valve Body: VB-2253-500-9-51
  • Actuator: MA40-7043-501
  • Actuator Range: SmartX Actuator

Specifications

Item Number VA-2253-527-9-51
Brand Schneider Electric
Control Input On/Off
Control Valves Type Ball Valve
CV / GPM 22.8 Cv
End Switch Yes
Housing NEMA 2
Spring Return Spring Return
Valve Size 1.5" - 2 Way
Voltage 24V
