VA-2253-527-9-27 | CONTROL VALVE | Schneider Electric

Brand: Schneider ElectricSKU: VA-2253-527-9-27

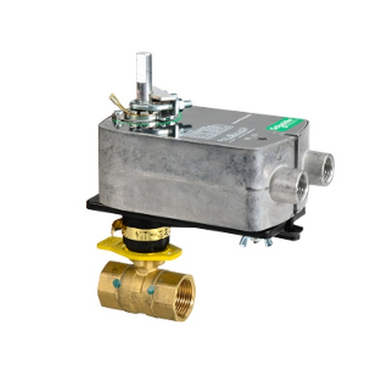

Schneider Electric | VA-2253-527-9-27
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VA-2253-527-9-27
Jump to: Overview & Specifications Reviews

Overview Details for VA-2253-527-9-27

Valve Assembly:
  • Body Size: 1 in/li>
  • Configuration: 2-Way
  • Type: Ball
  • Connection: NPT
  • Material Trim: Stainless Steel
  • Flow Coefficient: 54.2 cv
  • Close-Off Pressure: 100 PSI
  • Actuator Type: Electric
  • Control Signal: 2-Position (On/Off)
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Normally closed
  • Power Input Voltage: 24 VAC or 22 to 30 VDC
  • Leads and Connections: 3 ft Appliance
  • Torque: 35 in-lb
  • Mechanical Movement: Rotary
  • Auxiliary Switch: 1 SPDT
  • Protection Rating: NEMA 2
Assembly Components:
  • Valve Body: VB-2253-500-9-27
  • Valve Linkage: Linkage included with valve body
  • Actuator: MA40-7043-501
  • Actuator Range: SmartX
  • Actuator Comment: Actuator mounted right side up

Product Alert: Not for use with steam.

Specifications

Item Number VA-2253-527-9-27
Brand Schneider Electric
Control Input On/Off
Control Valves Type Ball Valve
CV / GPM 54.2 Cv
End Switch Yes
Housing NEMA 2
Spring Return Spring Return
Valve Size 1" - 2 Way
Voltage 24V
