VA-2253-526-9-41 | VB: 1-1/4 in, 2W, Ball, NPT, SS, 4.4 cv, No Steam, 70 PSI; Act (MA40-7043): Elec, 2Pos, SR, NC, 24 VAC, 22-30 VDC, App, 35 in-lb, Rotary, N2 | Schneider Electric

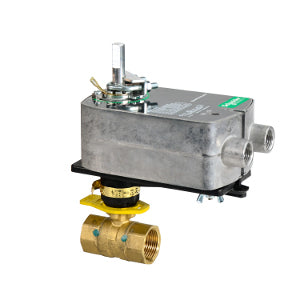

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VA-2253-526-9-41
Overview
Details for VA-2253-526-9-41
VB: 1-1/4 in, 2W, Ball, NPT, SS, 4.4 cv, No Steam, 70 PSI; Act (MA40-7043): Elec, 2Pos, SR, NC, 24 VAC, 22-30 VDC, App, 35 in-lb, Rotary, N2
Valve Assembly:- Body Size: 1-1/4 in
- Configuration: 2-Way
- Type: Ball
- Connection: NPT
- Material Trim: Stainless Steel
- Flow Coefficient: 4.4 cv
- Close-Off Pressure: 70 PSI
- Actuator Type: Electric
- Control Signal: 2-Position (On/Off)
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally closed
- Power Input Voltage: 24 VAC or 22 to 30 VDC
- Leads and Connections: 3 ft Appliance
- Torque: 35 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2
- Valve Body: VB-2253-500-9-41
- Valve Linkage: Linkage included with valve body
- Actuator: MA40-7043
- Actuator Range: SmartX
- Actuator Comment: Actuator mounted right side up
Product Alert: Not for use with steam.
Specifications
Item Number | VA-2253-526-9-41 |
Brand | Schneider Electric |
Control Input | On/Off |
Control Valves Type | Ball Valve |
CV / GPM | 4.41 Cv |
End Switch | No |
Housing | NEMA 2 |
Spring Return | Spring Return |
Valve Size | 1.25" - 2 Way |
Voltage | 24V |
