Documents: TWDFCW30K

Datasheet More Info

TWDFCW30K | Modicon is not available online per B Mazanec | Square D by Schneider Electric

Brand: Square DSKU: TWDFCW30K

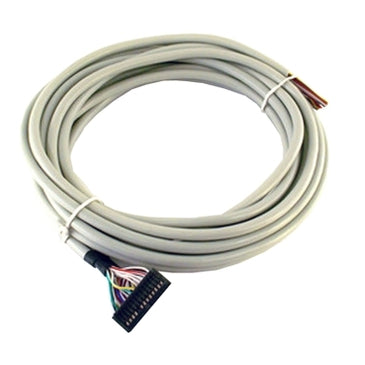

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TWDFCW30K

Jump to: Overview & Specifications Reviews

Overview Details for TWDFCW30K

**Modicon is not available online per B Mazanec**

pre-formed cable - for I/O extension - Twido - 3 m This product is part of the Twido range, an offer of connection accessories for I/O extension. This pre-formed cable is an accessory for I/O extension. The length of this cable is 3m and cross section is 0.035mm². It is furnished with 20-pin HE10 male connector (Twido side) and free end for electrical connection. It weighs 0.405kg. This pre formed cable is compatible with TWDDDO32TK, TWDDDO16UK, TWDDDO32UK discrete output module and TWDDDI32DK, TWDDDO16TK, TWDDDI16DK discrete input module. The Modicon M221 logic controller offers best in class performance. Achieve benchmark performance while increasing profitability with the Modicon M221 logic controller, the most complete controller in the new Modicon range.

Specifications

Range of Product: Twido
accessory / separate part category: Connection accessories
accessory / separate part type: Connecting cable
accessory / separate part designation: Pre-formed cable
accessory / separate part destination: I/O extension
Product Compatibility: TWDDDI32DK;TWDDDO32TK;TWDDDO16UK;TWDDDO32UK;TWDDDO16TK;TWDDDI16DK
Cable length: 9.84 ft (3 m)
cable cross section: 0.00 in² (0.035 mm²)
AWG Gauge: AWG 22
electrical connection: 1 female connector HE10 20 Twido side;Free end
Net Weight: 0.89 lb(US) (0.405 kg)
Category: 22531-PLCS;TWIDO;TWD
Discount Schedule: PC12
GTIN: 3595862043410
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.69 in (4.3 cm)
Package 1 Width: 7.80 in (19.8 cm)
Package 1 Length: 8.54 in (21.7 cm)
Package 1 Weight: 15.80 oz (448.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 25
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 25.57 lb(US) (11.6 kg)
Warranty: 18 months
