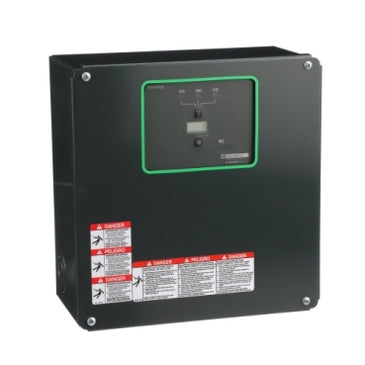

SSP04EMA24 | Surge Protect, EMA, 240kA, 480Y/277VAC, 3P4W,- T1 | Square D by Schneider Electric

Brand: Square DSKU: SSP04EMA24

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SSP04EMA24

Jump to: Overview & Specifications Reviews

Overview Details for SSP04EMA24

Surge Protect, EMA, 240kA, 480Y/277VAC, 3P4W,- T1

Square D™ load center surge protective devices, SSP04EMA24, are easy to install plug-in units that install as quickly as a standard circuit breaker. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. US and Canadian UL® Listed as Type 2 SPD to the UL 1449 standard. Complies with requirements of NEC® Article 285, CSA 233.1-87, and CSA C22.2 No. 8- M1986 as appropriate.

Specifications

Product: Surge protection device
Range: Surgelogic
Device Short Name: EMA
Surge Current: 240 kA
Voltage Rating: 480Y/277 V AC
Number of Phases: 3 phase
Wiring Configuration: 4-wire
Connection: Lugs AWG 10...AWG 2 copper 35.40 lbf.in (4 N.m)
MCOV: 320 V
Nominal Discharge Current: 20 kA
SCCR: 200 kA
Local Signalling: Status LED green per phase normal operation;Status LED red per phase fault
Provided Equipment: Alarm enable/disable switch;Surge counter;Dry contacts
Device Mounting: Surface
Height: 11.10 in (282 mm)
Width: 9.98 in (253.5 mm)
Depth: 5.31 in (135 mm)
Cable length: 19.02 in (483 mm)
Enclosure Rating: NEMA 1
Enclosure Material: Gray painted sheet steel
Standards: CSA C22.2 No 8;UL 1449:ed. 4;UL 1283:ed. 5
Ambient Operating: 149 °F (65 °C)
Category: 08464-SURGE PROTECTION EMA
Discount Schedule: DE1B
GTIN: 785901991489
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 6.00 in (15.24 cm)
Package 1 Width: 13.50 in (34.29 cm)
Package 1 Length: 12.00 in (30.48 cm)
Package 1 Weight: 15.91 lb(US) (7.217 kg)
