SLPSLCX | SpaceLogic SLP Series Sensor, Room, CO2, Temperature, Segmented LCD, BACnet MSTP/Modbus Outputs with Matte White Housing | Schneider Electric

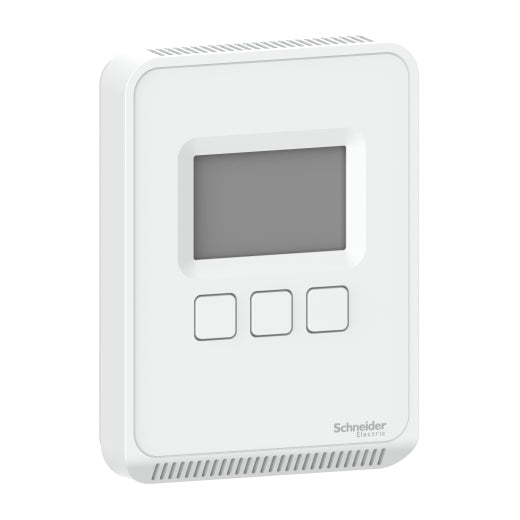

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SLPSLCX

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric SLPSLCX Documents

Datasheet More Info

Overview

Details for SLPSLCX

SpaceLogic SLP Series Sensor, Room, CO2, Temperature, Segmented LCD, BACnet MSTP/Modbus Outputs with Matte White Housing

The SpaceLogic SLP Series of air quality wall sensors for rooms is a flexible multisensor platform for use with BAS controllers. It is designed to accept BACnet MSTP or Modbus outputs. The wall mounted sensor housing is medium matte white. The user interface is assured by a LCD with 3 control buttons. This air quality sensor include a temperature and CO² elements. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.

Specifications

Range: SpaceLogic
Product or component type: Sensor
Product name: SpaceLogic Room Unit
Type of measurement: Carbon dioxide (CO2)
Temperature
device application: HVAC
Temperature control
Fan speed controller
Product certifications: CE conforming to EN 61000-6-2
CE conforming to EN 61000-6-3
CE conforming to EN 61326-1
RCM
EAC
ICES-003
CULus
communication port protocol: BACnet
Modbus
display size: 2 inch
display type: LCD display
information displayed: Temperature
Temperature set point
Menu-driven user interface
CO2
Location: Living space
Mounting support: Wall-mount
Depth: 24 mm
Height: 85 mm
Width: 115 mm
Network frequency: 50 Hz
60 Hz
Ambient air temperature for operation: 0…50 °C
Standards: UL 916
FCC part 15 class B
Colour: White
Sensor type: Transmitter
NDIR (non-dispersive infrared)
[Us] rated supply voltage: 24 V AC
20...30 V DC
device presentation: Complete product
Surface finish: Matt
Control type: + button
- button
Arrow button
Material: ABS (acrylonitrile butadiene-styrene)
function available: With temperature sensor
With CO2 sensor
Repeat accuracy: +/- 20 ppm
Connections - terminals: Screw terminal - 2 cable(s) (AWG 24...AWG 18)
Range compatibility: EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Temperature setting range: 10…35 °C
0…50 °C
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.8 cm
Package 1 Width: 9.67 cm
Package 1 Length: 14.0 cm
Package 1 Weight: 181.82 g
