SLPBXC2 | SpaceLogic SLP Series Air Quality Sensor, CO2, Humidity, Temperature, Room, BACnet MSTP/Modbus, Optimum Black Housing | Schneider Electric

Brand: Schneider ElectricSKU: SLPBXC2

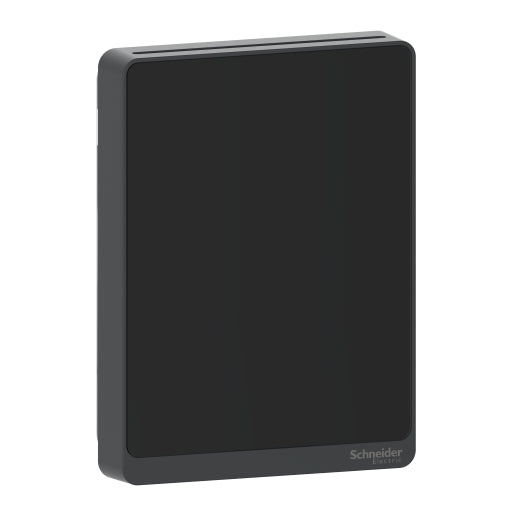

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SLPBXC2

Jump to: Overview & Specifications Reviews

Overview Details for SLPBXC2

SpaceLogic SLP Series Air Quality Sensor, CO2, Humidity, Temperature, Room, BACnet MSTP/Modbus, Optimum Black Housing

The SpaceLogic SLP Series of air quality wall sensors for rooms is a flexible multisensor platform for use with BAS controllers. It is designed to accept BACnet MSTP or Modbus outputs. The wall mounted sensor housing is optimum black. No user interface, the device is protected by a blank cover. This air quality sensor include a temperature, humidity and CO² elements. The dimensions of the device are 115 mm in height, 85 mm in width and 23.7 mm in depth.

Specifications

Range: SpaceLogic
Product or component type: Sensor
Product name: SpaceLogic Room Unit
Type of measurement: Carbon dioxide (CO2)
Humidity
Temperature
device application: HVAC
Temperature control
Fan speed controller
Product specific application: Humidity control
Product certifications: CE conforming to EN 61000-6-2
CE conforming to EN 61000-6-3
CE conforming to EN 61326-1
RCM
EAC
ICES-003
CULus
communication port protocol: BACnet
Modbus
display type: Without display
Location: Living space
Mounting support: Wall-mount
Depth: 23.7 mm
Height: 85 mm
Width: 115 mm
Network frequency: 50 Hz
60 Hz
Ambient air temperature for operation: 0…50 °C
Standards: UL 916
FCC part 15 class B
Calibration certificate: Humidity: replaceable RH element available in 1% & 2% with NIST
Colour: White
Sensor type: Transmitter
NDIR (non-dispersive infrared)
Thin-film capacitive
[Us] rated supply voltage: 24 V AC
20...30 V DC
device presentation: Complete product
Surface finish: Glossy
Material: ABS (acrylonitrile butadiene-styrene)
function available: With temperature sensor
With CO2 sensor
With humidity sensor
Hysteresis: 1.5 %
Repeat accuracy: +/- 20 ppm
Connections - terminals: Screw terminal - 2 cable(s) (AWG 24...AWG 18)
Range compatibility: EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Humidity setting range: 0…100 %
Temperature setting range: 10…35 °C
0…50 °C
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.8 cm
Package 1 Width: 9.67 cm
Package 1 Length: 14.0 cm
Package 1 Weight: 181.82 g
