Documents: SLPBLX2

Datasheet More Info

SLPBLX2 | SpaceLogic SLP Series Sensor, Room, Humidity, Temperature, LCD, BACnet MSTP/Modbus Outputs with Optimum Black Housing | Schneider Electric

Brand: Schneider ElectricSKU: SLPBLX2

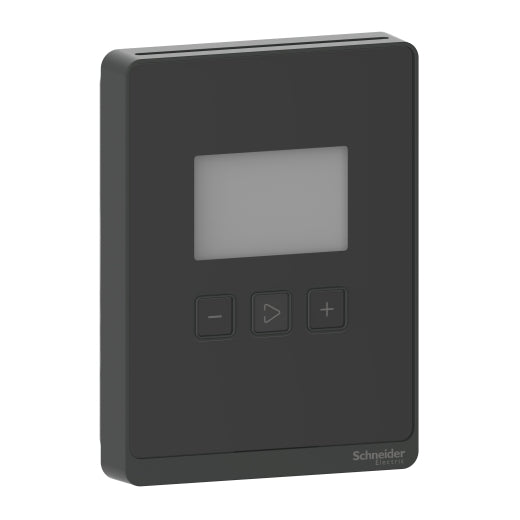

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SLPBLX2

Jump to: Overview & Specifications Reviews

Overview Details for SLPBLX2

SpaceLogic SLP Series Sensor, Room, Humidity, Temperature, LCD, BACnet MSTP/Modbus Outputs with Optimum Black Housing

The SpaceLogic SLP Series of wall humidity sensors for rooms is a flexible multisensor platform for use with BAS controllers. It is designed to accept BACnet MSTP or Modbus outputs. The wall mounted sensor housing is optimum black. The user interface is assured by a LCD with 3 control buttons. This air quality sensor include a temperature and humidity elements. The dimensions of the device are 115 mm in height, 85 mm in width and 23.7 mm in depth.

Specifications

Range: SpaceLogic
Product or component type: Sensor
Product name: SpaceLogic Room Unit
Type of measurement: Humidity
Temperature
device application: HVAC
Temperature control
Fan speed controller
Product specific application: Humidity control
Product certifications: CE conforming to EN 61000-6-2
CE conforming to EN 61000-6-3
CE conforming to EN 61326-1
RCM
EAC
ICES-003
CULus
communication port protocol: BACnet
Modbus
display size: 2 inch
display type: LCD display
information displayed: Temperature
Temperature set point
Menu-driven user interface
Relative humidity
Location: Living space
Mounting support: Wall-mount
Depth: 23.7 mm
Height: 85 mm
Width: 115 mm
Network frequency: 50 Hz
60 Hz
Ambient air temperature for operation: 0…50 °C
Standards: UL 916
FCC part 15 class B
Colour: Black
Sensor type: Transmitter
Thin-film capacitive
[Us] rated supply voltage: 24 V AC
20...30 V DC
device presentation: Complete product
Surface finish: Glossy
Control type: + button
- button
Arrow button
Material: ABS (acrylonitrile butadiene-styrene)
function available: With temperature sensor
With humidity sensor
Hysteresis: 1.5 %
Connections - terminals: Screw terminal - 2 cable(s) (AWG 24...AWG 18)
Output type: Analog
Range compatibility: EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Humidity setting range: 0…100 %
Temperature setting range: 10…35 °C
0…50 °C
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.8 cm
Package 1 Width: 9.67 cm
Package 1 Length: 14.0 cm
Package 1 Weight: 181.82 g
