SLAWTX2 | SpaceLogic SLA Series Humidity Sensor, Room, Temperature, Color Touchscreen, Analog Outputs, Optimum White Housing | Schneider Electric

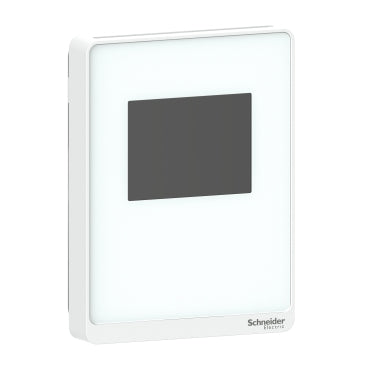

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SLAWTX2
Overview
Details for SLAWTX2
SpaceLogic SLA Series Humidity Sensor, Room, Temperature, Color Touchscreen, Analog Outputs, Optimum White Housing
The SpaceLogic SLA Series of wall humidity sensors for rooms is a flexible multisensor platform for use with BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc or 0 to 10Vdc outputs. Housings are available in Medium matte white and Optimum faces available in black and white. All housing types are available with three user interface options: touchscreen, LCD with three buttons and blank. Humidity and temperature sensors are included with all SLA Series humidity sensors. The SpaceLogic SLA Series of wall humidity sensors for rooms is a flexible multisensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is optimum white. The user interface is assured by a color touchscreen with control and setpoint menu. This air quality sensor include a temperature and humidity elements. The dimensions of the device are 115 mm in height, 85 mm in width and 23.7 mm in depth.Specifications
- range
- SpaceLogic
- Product or Component Type
- Sensor
- product name
- SpaceLogic Room Unit
- Type of Measurement
- Humidity;Temperature
- Device Application
- HVAC;Temperature control;Fan speed controller
- Product Specific Application
- Humidity control
- product certifications
- CE EN 61000-6-2;CE EN 61000-6-3;CE EN 61326-1;RCM;EAC;ICES-003;CULus
- Display Resolution
- 240 x 300 pixels
- Display size
- 2.4 inch
- Display Type
- Colour touchscreen
- Information Displayed
- Temperature;Temperature set point;Menu-driven user interface;Relative humidity
- Location
- Living Space
- Mounting Support
- Wall Mount
- Depth
- 0.93 in (23.7 mm)
- Height
- 3.35 in (85 mm)
- Width
- 4.53 in (115 mm)
- Network Frequency
- 50 Hz;60 Hz
- Ambient air temperature for operation
- 32…122 °F (0…50 °C)
- Standards
- UL 916;FCC Part 15 class B
- Color
- White
- Sensor Type
- Transmitter;Thin-film capacitive
- [Us] Rated Supply Voltage
- 24 V AC;20...30 V DC
- device presentation
- Complete product
- Surface Finish
- Glossy
- Communication Network Type
- Wired
- control type
- tactile
- Material
- ABS (acrylonitrile butadiene-styrene)
- Function Available
- With temperature sensor;With humidity sensor
- hysteresis
- 1.5 %
- connections - terminals
- Screw terminal - 2 AWG 24...AWG 18)
- Number of Outputs
- 1 fan;1 configurable
- output type
- Analog
- output voltage
- 0...10 V fan speed;0...5 V configurable analog output;0...10 V configurable analog output
- range compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- humidity setting range
- 0…100 %
- temperature setting range
- 50…95 °F (10…35 °C);32…122 °F (0…50 °C)
- GTIN
- 3606481901194
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.89 in (4.8 cm)
- Package 1 Width
- 3.81 in (9.67 cm)
- Package 1 Length
- 5.51 in (14.0 cm)
- Package 1 Weight
- 6.41 oz (181.82 g)
