SLAWLX2 | SpaceLogic SLA Series Sensor, Room, Humidity, Temperature, Segmented LCD, Analog Outputs with Optimum White Housing | Schneider Electric

Brand: Schneider ElectricSKU: SLAWLX2

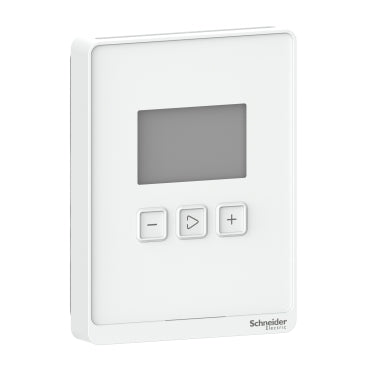

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SLAWLX2

Jump to: Overview & Specifications Reviews

Overview Details for SLAWLX2

SpaceLogic SLA Series Sensor, Room, Humidity, Temperature, Segmented LCD, Analog Outputs with Optimum White Housing

The SpaceLogic SLA Series of wall humidity sensors for rooms is a flexible multisensor platform for use with BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc or 0 to 10Vdc outputs. Housings are available in Medium matte white and Optimum faces available in black and white. All housing types are available with three user interface options: touchscreen, LCD with three buttons and blank. Humidity and temperature sensors are included with all SLA Series humidity sensors. The SpaceLogic SLA Series of wall humidity sensors for rooms is a flexible multisensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is optimum white. The user interface is assured by a LCD with 3 control buttons. This air quality sensor include a temperature and humidity elements. The dimensions of the device are 115 mm in height, 85 mm in width and 23.7 mm in depth.

Specifications

range: SpaceLogic
Product or Component Type: Sensor
product name: SpaceLogic Room Unit
Type of Measurement: Humidity;Temperature
Device Application: HVAC;Temperature control;Fan speed controller
Product Specific Application: Humidity control
product certifications: CE EN 61000-6-2;CE EN 61000-6-3;CE EN 61326-1;RCM;EAC;ICES-003;CULus
Display size: 2 inch
Display Type: LCD display
Information Displayed: Temperature;Temperature set point;Menu-driven user interface;Relative humidity
Location: Living Space
Mounting Support: Wall Mount
Depth: 0.93 in (23.7 mm)
Height: 3.35 in (85 mm)
Width: 4.53 in (115 mm)
Network Frequency: 50 Hz;60 Hz
Ambient air temperature for operation: 32…122 °F (0…50 °C)
Standards: UL 916;FCC Part 15 class B
Color: White
Sensor Type: Transmitter;Thin-film capacitive
[Us] Rated Supply Voltage: 24 V AC;20...30 V DC
device presentation: Complete product
Surface Finish: Glossy
Communication Network Type: Wired
control type: button;button;button
Material: ABS (acrylonitrile butadiene-styrene)
Function Available: With temperature sensor;With humidity sensor
hysteresis: 1.5 %
connections - terminals: Screw terminal - 2 AWG 24...AWG 18)
Number of Outputs: 1 fan;1 configurable
output type: Analog
output voltage: 0...10 V fan speed;0...5 V configurable analog output;0...10 V configurable analog output
range compatibility: EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
humidity setting range: 0…100 %
temperature setting range: 50…95 °F (10…35 °C);32…122 °F (0…50 °C)
GTIN: 3606481901132
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.89 in (4.8 cm)
Package 1 Width: 3.81 in (9.67 cm)
Package 1 Length: 5.51 in (14.0 cm)
Package 1 Weight: 6.41 oz (181.82 g)
