SLASXX2 | SpaceLogic SLA Series Humidity Sensor, Room, Temperature, Analog Outputs, Matte White Housing | Schneider Electric

Brand: Schneider ElectricSKU: SLASXX2

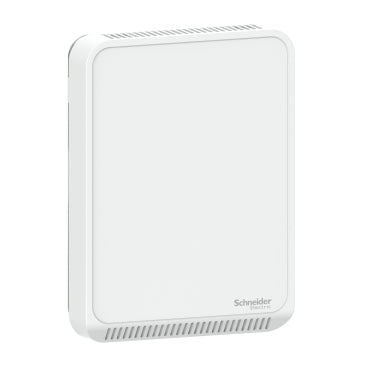

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SLASXX2

Jump to: Overview & Specifications Reviews

Overview Details for SLASXX2

SpaceLogic SLA Series Humidity Sensor, Room, Temperature, Analog Outputs, Matte White Housing

The SpaceLogic SLA Series of wall humidity sensors for rooms is a flexible multisensor platform for use with BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc or 0 to 10Vdc outputs. Housings are available in Medium matte white and Optimum faces available in black and white. All housing types are available with three user interface options: touchscreen, LCD with three buttons and blank. Humidity and temperature sensors are included with all SLA Series humidity sensors. The SpaceLogic SLA Series of wall humidity sensors for rooms is a flexible multisensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is medium matte white. No user interface, the device is protected by a blank cover. This air quality sensor include a temperature and humidity elements. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.

Specifications

range: SpaceLogic
Product or Component Type: Sensor
product name: SpaceLogic Room Unit
Type of Measurement: Humidity;Temperature
Device Application: HVAC;Temperature control;Fan speed controller
Product Specific Application: Humidity control
product certifications: CE EN 61000-6-2;CE EN 61000-6-3;CE EN 61326-1;RCM;EAC;ICES-003;CULus
Display Type: Without Display
Location: Living Space
Mounting Support: Wall Mount
Depth: 0.94 in (24 mm)
Height: 3.35 in (85 mm)
Width: 4.53 in (115 mm)
Network Frequency: 50 Hz;60 Hz
Ambient air temperature for operation: 32…122 °F (0…50 °C)
Standards: UL 916;FCC Part 15 class B
Color: White
Sensor Type: Transmitter;Thin-film capacitive
[Us] Rated Supply Voltage: 24 V AC;20...30 V DC
device presentation: Complete product
Surface Finish: Matte
Communication Network Type: Wired
Material: ABS (acrylonitrile butadiene-styrene)
Function Available: With temperature sensor;With humidity sensor
hysteresis: 1.5 %
connections - terminals: Screw terminal - 2 AWG 24...AWG 18)
Number of Outputs: 1 fan;1 configurable
output type: Analog
output voltage: 0...10 V fan speed;0...5 V configurable analog output;0...10 V configurable analog output
range compatibility: EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
humidity setting range: 0…100 %
temperature setting range: 50…95 °F (10…35 °C);32…122 °F (0…50 °C)
GTIN: 3606481900562
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.89 in (4.8 cm)
Package 1 Width: 3.81 in (9.67 cm)
Package 1 Length: 5.51 in (14.0 cm)
Package 1 Weight: 6.41 oz (181.82 g)
