SLASLXX | SpaceLogic SLA Series Sensor, Room, Temperature, Segmented LCD, Analog Outputs with Matte White Housing | Schneider Electric

Brand: Schneider ElectricSKU: SLASLXX

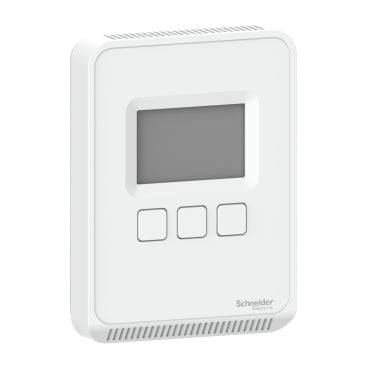

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SLASLXX

Jump to: Overview & Specifications Reviews

Overview Details for SLASLXX

SpaceLogic SLA Series Sensor, Room, Temperature, Segmented LCD, Analog Outputs with Matte White Housing

The SpaceLogic SLA Series of wall temperature sensors for rooms is a versatile platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is medium matte white. The user interface is assured by a LCD with 3 control buttons. This air quality sensor include a temperature element. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.

Specifications

Product or Component Type: Sensor
Type of Measurement: Temperature
Device Application: HVAC;Temperature control;Fan speed controller
Display size: 2 inch
Location: Living Space
Mounting Support: Wall Mount
Depth: 0.94 in (24 mm)
Height: 3.35 in (85 mm)
Width: 4.53 in (115 mm)
Network Frequency: 50 Hz;60 Hz
Output Type: Analog
Standards: UL 916;FCC Part 15 class B
Color: White
Ambient Air Temperature for Operation: 32…122 °F (0…50 °C)
Relative Humidity: 0…95 %
Sensor Type: Transmitter
product name: SpaceLogic Room Unit
Function Available: With temperature sensor
Surface Finish: Matte
range: SpaceLogic
device presentation: Complete product
Information Displayed: Temperature;Temperature set point;Menu-driven user interface
Communication Network Type: Wired
connections - terminals: Screw terminal - 2 AWG 24...AWG 18)
output voltage: 0...10 V fan speed;0...5 V configurable analog output;0...10 V configurable analog output
Number of Outputs: 1 fan;1 configurable
range compatibility: EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
control type: button;button;button
Material: ABS (acrylonitrile butadiene-styrene)
[Us] rated supply voltage: 24 V AC 50-60 Hz;20...30 V DC
display type: LCD display
communication port protocol: -
measurement accuracy: Typical +/- 0.2 %
temperature setting range: 50…95 °F (10…35 °C);32…122 °F (0…50 °C)
measurement range: 0...50 °C temperature
product certifications: CE EN 61000-6-2;CE EN 61000-6-3;CE EN 61326-1;RCM;EAC;ICES-003;CULus
GTIN: 3606481900456
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.77 in (4.5 cm)
Package 1 Width: 3.58 in (9.1 cm)
Package 1 Length: 4.92 in (12.5 cm)
Package 1 Weight: 6.41 oz (181.82 g)
