SLASLCVX | SpaceLogic SLA Series Sensor, Room, CO2, VOC, Temperature, Segmented LCD, Analog Outputs with Matte White Housing | Schneider Electric

Brand: Schneider ElectricSKU: SLASLCVX

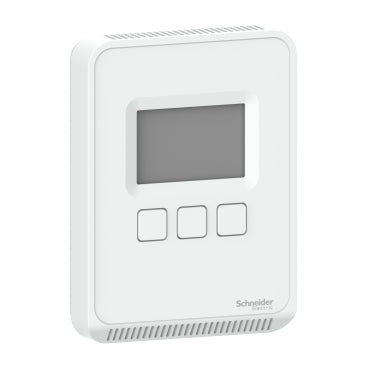

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SLASLCVX

Jump to: Overview & Specifications Reviews

Overview Details for SLASLCVX

SpaceLogic SLA Series Sensor, Room, CO2, VOC, Temperature, Segmented LCD, Analog Outputs with Matte White Housing

The SpaceLogic SLA Series of wall air quality sensors for rooms is a flexible multisensor platform for use with BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc or 0 to 10Vdc outputs. Housings are available in Medium matte white and Optimum faces available in black and white. All housing types are available with three user interface options: touchscreen, LCD with three buttons and blank. CO2 and temperature sensors are included with all SLA Series air quality sensors. Models with VOC sensors and relative humidity sensors are also available. The SpaceLogic SLA Series of wall air quality sensors for rooms is a flexible multisensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is medium matte white. The user interface is assured by a LCD with 3 control buttons. This air quality sensor include a temperature, CO² and VOC elements. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.

Specifications

range: SpaceLogic
Product or Component Type: Sensor
product name: SpaceLogic Room Unit
Type of Measurement: Carbon Dioxide (CO2);Volatile Organic Compounds (VOC);Temperature
Device Application: HVAC;Temperature control;Fan speed controller
Product Specific Application: Indoor air quality control
product certifications: CE EN 61000-6-2;CE EN 61000-6-3;CE EN 61326-1;RCM;EAC;ICES-003;CULus
Display size: 2 inch
Display Type: LCD display
Information Displayed: Temperature;Temperature set point;Menu-driven user interface;CO2;Air quality index
Location: Living Space
Mounting Support: Wall Mount
Depth: 0.94 in (24 mm)
Height: 3.35 in (85 mm)
Width: 4.53 in (115 mm)
Network Frequency: 50 Hz;60 Hz
Ambient air temperature for operation: 32…122 °F (0…50 °C)
Standards: UL 916;FCC Part 15 class B
Color: White
Sensor Type: Transmitter;NDIR (non-dispersive infrared);VOC transmitter
[Us] Rated Supply Voltage: 24 V AC;20...30 V DC
device presentation: Complete product
Surface Finish: Matte
Communication Network Type: Wired
control type: button;button;button
Material: ABS (acrylonitrile butadiene-styrene)
Function Available: With temperature sensor;With CO2 sensor;With VOC (volatile organic compounds) sensor
repeat accuracy: +/- 20 ppm
connections - terminals: Screw terminal - 2 AWG 24...AWG 18)
Number of Outputs: 1 fan;1 configurable
output type: Analog
output voltage: 0...10 V fan speed;0...5 V configurable analog output;0...10 V configurable analog output
range compatibility: EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
temperature setting range: 50…95 °F (10…35 °C);32…122 °F (0…50 °C)
GTIN: 3606481900425
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.89 in (4.8 cm)
Package 1 Width: 3.81 in (9.67 cm)
Package 1 Length: 5.51 in (14.0 cm)
Package 1 Weight: 6.41 oz (181.82 g)
