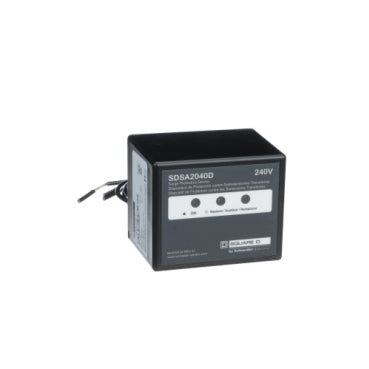

SDSA2040D | SDSA Surge Protective Device, 240 V Delta, 3-phase, 3-wire | Square D by Schneider Electric

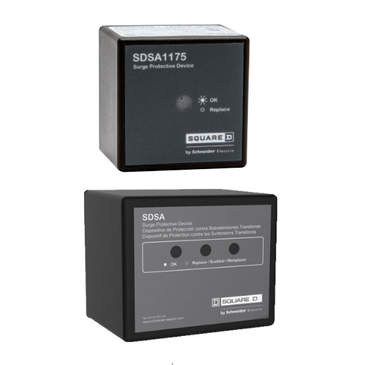

Square D | SDSA2040D
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SDSA2040D

Documents and manuals

Square D SDSA2040D Documents

Overview

Details for SDSA2040D

SDSA Surge Protective Device, 240 V Delta, 3-phase, 3-wire

SDSA 3-Phase Surge Protective Device
  • Voltage: 240V Delta
  • Surge Current per Phase: 40kA
  • Modes of Protection: 3
  • Configuration: 3mm, 3-wire
  • MCOV: 360V L-L
Square D™ load center surge protective devices, SDSA2040D, are easy to install plug-in units that install as quickly as a standard circuit breaker. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. US and Canadian UL® Listed as Type 2 SPD to the UL 1449 standard. Complies with requirements of NEC® Article 285, CSA 233.1-87, and CSA C22.2 No. 8- M1986 as appropriate.

Specifications

Product
Surge protection device
Range
Surgelogic
Surge Current
40 kA
Voltage Rating
240 V delta AC
Number of Phases
3 phase
Wiring Configuration
3-wire
Connection
Wire AWG 12 copper
MCOV
180 V
Nominal Discharge Current
10 kA
SCCR
200 kA
Local Signalling
Status LED normal operation
Mounting Support
Panel mounting
Height
3.07 in (78 mm)
Width
3.62 in (92 mm)
Depth
2.64 in (67 mm)
Cable length
24 in (609.60 mm)
Enclosure Rating
NEMA 4X
Enclosure Material
Black Plastic
Standards
UL 1449:ed. 4;CSA C22.2 No 8:1986
Ambient Operating
149 °F (65 °C)
Category
08462-SURGE PROTECTION SDSA
Discount Schedule
DE1B
GTIN
785901600022
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.50 in (8.89 cm)
Package 1 Width
4.00 in (10.16 cm)
Package 1 Length
5.00 in (12.7 cm)
Package 1 Weight
14.56 oz (412.769 g)
