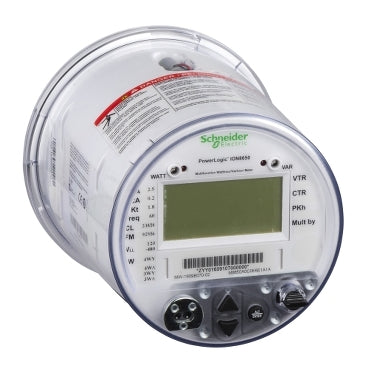

S8650C0C0H6E1A0A | SD8650-32MB-9S-5A-LV-60Hz-ETH-RM | Square D by Schneider Electric

Brand: Square DSKU: S8650C0C0H6E1A0A

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to S8650C0C0H6E1A0A

Jump to: Overview & Specifications Reviews

Overview Details for S8650C0C0H6E1A0A

SD8650-32MB-9S-5A-LV-60Hz-ETH-RM

Specifications

range: PowerLogic
product name: PowerLogic ION8650
device short name: ION8650C
Product or Component Type: Energy and power quality meter
power quality analysis: harmonic distortion;programmablity (logic and math functions);voltage sag and swell detection;up to the 31st harmonic
Device Application: Energy pulsing and totalisation;Co-generation and IPP monitoring;Demand and power factor control;Load curtailment;Equipment monitoring and control;Tariff metering;Instrument transformer correction
type of measurement: Power factor total;Power factor per phase;Apparent power total;Apparent power per phase;Active power total;Active power per phase;Reactive power total;Reactive power per phase;Current;Voltage;Frequency
supply voltage: 120...277 V AC 47...63 Hz;65...120 V AC 47...63 Hz;80...160 V DC
Network Frequency: 60 Hz
outlet standard: American
Line Rated Current: 1 A;2 A;5 A
poles description: 1P + N;3P + N;3P
power consumption in VA: 24 VA
maximum power consumption in VA: 33 VA
Display Type: FSTN transflective LCD
form designation: 9S 3-element 4;36S 2½-element 4;29S 2½-element 4
sampling rate: 1024 samples/cycle
measurement current: 0.001…24 A
input type: current 0.01...20 A 0.05 Ohm)
measurement voltage: 57…277 V AC phase to neutral;100…480 V AC phase to phase
number of inputs: 0
measurement accuracy: Current 0.1 %;Voltage 0.1 %;Power 0.1 %;Power factor 0.1 %;Frequency 0.001 Hz;Energy 0.1 %
accuracy class: Class 0.2S energy IEC 62053-22;Class 0.2S energy IEC 62053-23;Class 0.2 energy ANSI C12.20
Number of Outputs: 2 pulse
communication port protocol: TCP/IP 10/100 Mbit/s;DNP3 300...115200 bauds;ION 300...115200 bauds;DLMS 300...115200 bauds;Modbus 57600 bauds;Ansi C12.18 <= 19200 bauds;DNP3 10/100 Mbit/s;ION 10/100 Mbit/s;IEC 61850 ed. 2 10/100 Mbit/s;EtherGate;Modbus RTU;slave 300...115200 bauds;Modbus TCP;slave 10/100 Mbit/s
communication port support: RJ45 ETHERNET;SUB-D 9 RS485/RS232;infrared;Terminal block RS485
time synchronisation protocol: GPS: Truetime/Datum;IRIG-B
data recording: Sag and swell logs;Harmonics logs;Revenue logs;Time stamping;Historical logs;Event logs;GPS synchronisation;Data logs;Alarms
Transmission Rate: <= 19200 bauds;10/100 Mbit/s;57600 bauds;300...115200 bauds
memory capacity: 32 MB
web services: Alarm notification by e-mail;Robust security logs;Port addressing user designed;Web server
Ethernet service: SNMP-Traps and SYSLOG;Enable/disable serial ports;Enable/disable Ethernet protocols
tamperproof of settings: Protected by access code
compatibility code: ION8650C
electromagnetic compatibility: Electrostatic discharge immunity test IEC 61000-4-2;Susceptibility to electromagnetic fields IEC 61000-4-3;Electrical fast transient/burst immunity test IEC 61000-4-4;1.2/50 µs shock waves immunity test IEC 61000-4-5;Conducted and radiated emissionsB CISPR 22;Conducted RF disturbances IEC 61000-4-6;Immunity to impulse waves IEC 61000-4-12
Mounting Mode: Socket-mounted
mounting support: Enclosure door
Type of Installation: Indoor installation
overvoltage category: III
IP degree of protection: Front face IP65;Back IP51
relative humidity: 5…95 %
pollution degree: 2
ambient air temperature for operation: -40…185 °F (-40…85 °C)
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Operating altitude: 0...9842.52 ft (0...3000 m)
Standards: ANSI C12.1;IEC 62052-11
Width: 7.01 in (178 mm)
Depth: 9.33 in (237 mm)
Height: 7.01 in (178 mm)
Net Weight: 15.43 lb(US) (7 kg)
Category: 09749-POWERLOGIC ION 8650C HARDWARE
Discount Schedule: PM1S
Returnability: Yes
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 10.24 in (26.0 cm)
Package 1 Width: 11.02 in (28.0 cm)
Package 1 Length: 17.32 in (44.0 cm)
Package 1 Weight: 9.92 lb(US) (4.5 kg)
