S29450 | Auxiliary Switch; for H; J; L; M; P and R Frame PowerPact Breakers | Square D by Schneider Electric

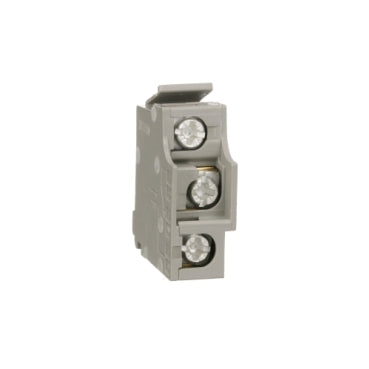

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to S29450

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D S29450 Documents

Datasheet More Info

Overview

Details for S29450

Auxiliary Switch; for H; J; L; M; P and R Frame PowerPact Breakers

Auxiliary Switch; for H; J; L; M; P and R Frame PowerPact Breakers PowerPact™ M-, P-Frame electronic trip molded case circuit breakers are designed to protect electrical systems from damage caused by overloads, short circuits, and ground faults. All circuit breakers are designed to open and close a circuit by nonautomatic means and to open the circuit automatically on a predetermined overcurrent. Electronic trip molded case circuit breakers use an electronic trip system to signal the circuit breaker to open automatically. The PowerPact M-, P-Frame circuit breakers are dual rated to UL489 and IEC 60947-2. This PowerPact M-Frame Molded Case Circuit Breaker Auxiliary Switch. This product complies to UL & IEC certifications.

Specifications

Range of Product: PowerPact P;PowerPact M;PowerPact R
Product or Component Type: Auxiliary switch
accessory / separate part category: Electrical accessory
circuit breaker name: PowerPact M or P
circuit breaker type: Standard
product compatibility: PowerPact M PowerPact;PowerPact P PowerPact;PowerPact R PowerPact
Width: 0.496 in (12.60 mm)
Depth: 1.19 in (30.23 mm)
Height: 1.34 in (34.04 mm)
Product Certifications: UL;IEC;CSA;NEMA
Category: 01250-M;P;R FRAME ACCESSORIES ONLY
Discount Schedule: DE2
GTIN: 785901506416
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.60 in (9.144 cm)
Package 1 Width: 5.80 in (14.732 cm)
Package 1 Length: 12.80 in (32.512 cm)
Package 1 Weight: 1.60 oz (45.35 g)
Warranty: 18 months
