RM35TF30 | 3 PHASE RELAY 250V 5AMP RM35 | Square D by Schneider Electric

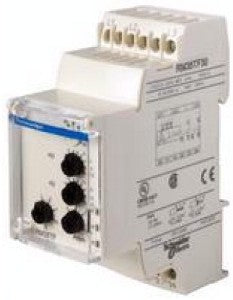

3 PHASE RELAY 250V 5AMP RM35

• Vibration Resistance: Operational 0.035 mm from 10 to 150 Hz
• Shock Resistance 5
• Degree of Protection IP30 (Casing) - IP20 (Terminal Block)
• Wiring range: Solid Cable without Cable End Two: 16 to 20 AWG (1.5 to 0.5 mm2) - One: 14 to 20 AWG (2.5 to 0.5 mm2)
• Application Control of 3-phase supplies
• Function Phase failure - Asymmetry - Overvoltage or undervoltage - Phase sequence
• Supply Voltage 220 to 480 VAC
• Voltage Limits -15% to +10%
• Adjustment of Voltage Threshold 2 to 20 % of Un selected
• Frequency of Measured Signal 50 to 60 Hz ± 10%
• Current Rating 5 A (1 A at 24 VDC, 5 A at 24 VAC, 3 A at 250 VAC)
• Contact Type Cadmium-free
• Electrical Life (UL508) Operations at Rated Current(Resistive) 10,000 operations
• Contact Configuration DPDT
• Frequency 50/60 Hz ±10%
• Hysteresis 2% of Un, Fixed
• Output Type 904-01-01 05:00:00
• Operating Range 194 to 528 VAC
• Minimum Breaking Current 10 V at 5 VDC
• Insulation Test Voltage: Shock Wave 4 kV
• Maximum Measuring Cycle 140 ms per measurement as true rms value
• Maximum Response In The Event of A Fault < 200 ms
• Measurement Range 194 to 528 VAC
• Phase-Phase Voltage Selection 220V - 380V - 480V - 400V - 415 - 440V
• Setting Accuracy ± 10% of the full scale value
• Utilization Categories AC-12 - AC-14 - AC-13 - DC-13 - DC-12 - AC-15
• Delay on Pick-up 500 ms
• Time Delay on Crossing The Threshold Tt 0.1 to 10 sec, 0 + 10%
• Ambient Air Temperature around the Device - Operation -20 to 50
• Ambient Air Temperature around the Device - Storage -40 to 70
• Permissible Relative Humidity 2 x 24 hrs. to +95% RH at +131 8F (55 8C) without condensation
• Wiring Range: Flexible Cable with Cable End Two: 16 to 20 AWG (1.5 to 0.5 mm2) - One: 14 to 20 AWG (2.5 to 0.5 mm2)
