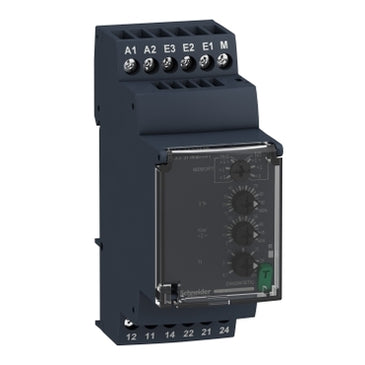

RM35JA32MR | Current Control Relay, 8A, 20.4-264V AC/DC | Square D by Schneider Electric

Brand: Square DSKU: RM35JA32MR

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RM35JA32MR

Jump to: Overview & Specifications Reviews

Overview Details for RM35JA32MR

Current Control Relay, 8A, 20.4-264V AC/DC

Current Control Relay

Nominal Output Current: 8A
Supply Voltage Limits: 20.4-264V AC/DC
Mounting Position: Any

This Harmony RM35-JA relay allows monitoring of current control in single phase networks. This modular multi function single phase current control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Specifications

Range of Product: Harmony Control Relays
Product or Component Type: Current control relay
Relay Type: Current control relay
relay name: RM35JA
relay monitored parameters: Overcurrent or undercurrent in window mode;Overcurrent or undercurrent detection
time delay: Adjustable 0.1...30 s;+/- 10 % of the full scale value on crossing the threshold Tt
switching capacity in VA: 2000 VA
minimum switching current: 10 mA 5 V DC
maximum switching current: 8 A AC
maximum power consumption in VA: 3.5 VA
measurement range: 0.15...1.5 A E1-M terminals;0.5...5 A E2-M terminals;1.5...15 A E3-M terminals;150 mA...15 A current AC/DC 50/60 Hz
utilisation category: AC-15 IEC 60947-5-1;DC-13 IEC 60947-5-1;AC-1 IEC 60947-4-1;DC-1 IEC 60947-4-1
contacts type and composition: 2 C/O
reset time: 1500 ms at maximum voltage
maximum switching voltage: 250 V AC
[Us] Rated Supply Voltage: 24...240 V AC/DC 50/60 Hz +/- 10 %
supply voltage limits: 20.4…264 V AC/DC
operating voltage tolerance: - 15 % + 10 % Un
maximum power consumption in W: 1.5 W DC
resistance across terminals: 0.005 Ohm E3-M terminals;0.015 Ohm E2-M terminals;0.05 Ohm E1-M terminals
output contacts: 2 C/O
nominal output current: 8 A
maximum measuring cycle: 100 ms measurement cycle as true rms value
internal input resistance: 0.015 Ohm;0.005 Ohm;0.05 Ohm
setting accuracy of the switching threshold: +/- 10 % of the full scale
switching threshold drift: <= 0.05 % per degree centigrade depending permissible ambient air temperature;<= 1 % within the supply voltage range
setting accuracy of time delay: 10 P
time delay drift: <= 0.05 % per degree centigrade depending permissible ambient air temperature;<= 1 % within the supply voltage range
hysteresis: 5…50 % adjustable threshold setting;3 % fixed full scale for window mode
delay at power up: 0.3 s
repeat accuracy: +/- 0.5 % input and measurement circuit;+/- 2 % time delay
measurement error: < 1 % over the whole range with voltage variation;0.05 %/°C with temperature variation
response time: <= 500 ms (on crossing the threshold)
threshold setting: 10...100 %
overvoltage category: III IEC 60664-1;III UL 508
insulation resistance: > 100 MOhm 500 V DC IEC 60255-27
insulation: Between supply and measurement
connections - terminals: Screw terminals;2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end;Screw terminals;2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end;Screw terminals;1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end;Screw terminals;1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
tightening torque: 5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
housing material: Self-extinguishing plastic
local signalling: for relay ON LED (yellow);for power ON LED (green)
mounting support: 35 mm DIN rail conforming to EN/IEC 60715
electrical durability: 100000 cycles
mechanical durability: 10000000 cycles
safety reliability data: MTTFd = 296.8 years;B10d = 270000
contacts material: Cadmium free
Width: 1.38 in (35 mm)
Net Weight: 0.26 lb(US) (0.12 kg)
immunity to microbreaks: 50 ms
electromagnetic compatibility: Immunity for residential;commercial and light-industrial environments EN/IEC 61000-6-1;Immunity for industrial environments EN/IEC 61000-6-2;Emission standard for industrial environments EN/IEC 61000-6-4;Electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2;Electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2;Radiated radio-frequency electromagnetic field immunity test 10 V/mlevel 3 IEC 61000-4-3;Electrical fast transient/burst immunity test 4 kV direct)level 4 IEC 61000-4-4;Electrical fast transient/burst immunity test 2 kV capacitive coupling)level 4 IEC 61000-4-4;Surge immunity test 4 kV common mode)level 4 IEC 61000-4-5;Surge immunity test 2 kV differential mode)level 4 IEC 61000-4-5;Conducted and radiated emissionsclass B group 1 CISPR 11;Conducted and radiated emissionsclass B CISPR 22;Emission standard for residential;commercial and light-industrial environments except radiated emission) EN/IEC 61000-6-3
Standards: EN/IEC 60255-1
Product Certifications: CE;GL;CCC;EAC;RCM;UL;CSA
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
ambient air temperature for operation: -4…122 °F (-20…50 °C) 60 Hz;-4…140 °F (-20…60 °C) 50 Hz
environmental characteristic: 3K3 C
relative humidity: 93…97 % 77…131 °F (25…55 °C) IEC 60068-2-30
vibration resistance: 0.075 mm 10…58.1 Hz) not in operation IEC 60068-2-6;1 gn 10…58.1 Hz) not in operation IEC 60068-2-6;0.035 mm 58.1…150 Hz) in operation IEC 60068-2-6;0.5 gn 58.1…150 Hz) in operation IEC 60068-2-6
shock resistance: 15 gn 11 ms) not in operation IEC 60068-2-27;5 gn 11 ms) in operation IEC 60068-2-27
IP degree of protection: IP20 IEC 60529 terminals);IP50 IEC 60529 front panel);IP30 IEC 60529 housing)
pollution degree: 3 IEC 60664-1;3 UL 508
dielectric test voltage: 2.5 kV AC 50 Hz;1 min IEC 60255-27
Category: 22380-RELAYS-MEASUREMENT (RM17-RM35)
Discount Schedule: CP2
GTIN: 3606480792304
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.07 in (7.8 cm)
Package 1 Width: 1.77 in (4.5 cm)
Package 1 Length: 3.74 in (9.5 cm)
Package 1 Weight: 4.62 oz (131 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 32
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 10.24 lb(US) (4.647 kg)
Package 3 Height: 19.69 in (50.0 cm)
