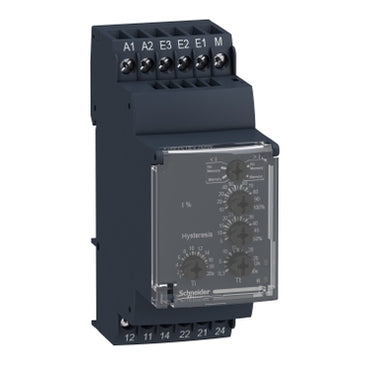

RM35JA31MW | Current Control Relay RM35-J - Range 2..500 mA | Square D by Schneider Electric

Brand: Square DSKU: RM35JA31MW

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RM35JA31MW

Jump to: Overview & Specifications Reviews

Overview Details for RM35JA31MW

Current Control Relay RM35-J - Range 2..500 mA

This Harmony RM35-JA relay allows monitoring of current control in single phase networks. This modular multi function single phase current control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Specifications

Range of Product: Harmony Control Relays
Product or Component Type: Current control relay
Relay Type: Current control relay
relay name: RM35JA
relay monitored parameters: Overcurrent or undercurrent in window mode;Overcurrent or undercurrent detection
time delay: Adjustable 1...20 s;0 + 10 % on energisation Ti;Adjustable 0.3...30 s;0 + 10 % on crossing the threshold Tt
switching capacity in VA: 1250 VA
minimum switching current: 10 mA 5 V DC
maximum switching current: 5 A AC
maximum power consumption in VA: 3.5 VA AC
measurement range: 10...100 mA E2-M terminals;2...20 mA E1-M terminals;2...500 mA current;50...500 mA E3-M terminals
utilisation category: AC-12 IEC 60947-5-1;AC-13 IEC 60947-5-1;AC-14 IEC 60947-5-1;AC-15 IEC 60947-5-1;DC-12 IEC 60947-5-1;DC-13 IEC 60947-5-1;DC-14 IEC 60947-5-1
contacts type and composition: 2 C/O
reset time: 1500 ms time delay
maximum switching voltage: 250 V AC
[Us] Rated Supply Voltage: 24...240 V AC/DC 50/60 Hz +/- 10 %
supply voltage limits: 20.4…264 V AC/DC
operating voltage tolerance: - 15 % + 10 % Un
maximum power consumption in W: 0.6 W DC
control circuit frequency: 40...70 Hz +/- 10 %
resistance across terminals: 1 Ohm E2-M terminals;5 Ohm E1-M terminals;0.2 Ohm E3-M terminals
output contacts: 2 C/O
nominal output current: 5 A
maximum measuring cycle: 30 ms measurement cycle as true rms value
hysteresis: 5…50 % threshold setting
delay at power up: 0.3 s
measurement accuracy: +/- 10 % of the full scale value
repeat accuracy: +/- 0.5 % input and measurement circuit;+/- 2 % time delay
measurement error: 0.05 %/°C with temperature variation;1 by volt over the whole range with voltage variation
polarity: No DC
threshold setting: 10...100 %
Marking: CE : EMC 89/336/EEC;CE : 73/23/EEC
overvoltage category: III IEC 60664-1
insulation resistance: > 500 MOhm 500 V DC between supply and relay output IEC 60255-5;> 500 MOhm 500 V DC between measurement and relay output IEC 60664-1;> 1 MOhm 500 V DC between supply and measurement IEC 60255-5;> 500 MOhm 500 V DC between supply and relay output IEC 60664-1;> 500 MOhm 500 V DC between measurement and relay output IEC 60255-5;> 1 MOhm 500 V DC between supply and measurement IEC 60664-1
[Ui] rated insulation voltage: 250 V IEC 60664-1
operating position: Any position without derating
connections - terminals: Screw terminals;1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end;Screw terminals;2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end;Screw terminals;1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end;Screw terminals;2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
tightening torque: 5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
housing material: Self-extinguishing plastic
local signalling: for power ON LED (green);for relay ON LED (yellow)
mounting support: 35 mm symmetrical DIN rail conforming to EN/IEC 60715
electrical durability: 100000 cycles
mechanical durability: 30000000 cycles
operating rate: <= 360 operations/hour full load
safety reliability data: MTTFd = 296.8 years;B10d = 270000
contacts material: Cadmium free
Width: 1.38 in (35 mm)
Net Weight: 0.29 lb(US) (0.13 kg)
immunity to microbreaks: 50 ms
electromagnetic compatibility: Emission standard for industrial environments EN/IEC 61000-6-4;Emission standard for residential;commercial and light-industrial environments EN/IEC 61000-6-3;Immunity for industrial environments NF EN/IEC 61000-6-2
Standards: EN/IEC 60255-6
Product Certifications: GL;CSA;GOST;UL;C-tick
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
ambient air temperature for operation: -4…122 °F (-20…50 °C)
relative humidity: 95 % 131 °F (55 °C) IEC 60068-2-30
vibration resistance: 0.35 mm 5…57.6 Hz)IEC 60068-2-6;1 gn 57.6…150 Hz)IEC 60255-21-1
shock resistance: 15 gn 11 ms IEC 60255-21-1
IP degree of protection: IP20 IEC 60529 terminals);IP30 IEC 60529 casing)
pollution degree: 3 IEC 60664-1
dielectric test voltage: 2 kV AC 50 Hz;1 min IEC 60255-5;2 kV AC 50 Hz;1 min IEC 60664-1
non-dissipating shock wave: 4 kV IEC 60255-5;4 kV IEC 60664-1;4 kV IEC 61000-4-5
Category: 22380-RELAYS-MEASUREMENT (RM17-RM35)
Discount Schedule: CP2
GTIN: 3389119405218
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.77 in (4.5 cm)
Package 1 Width: 3.07 in (7.8 cm)
Package 1 Length: 3.74 in (9.5 cm)
Package 1 Weight: 4.87 oz (138.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 48
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 15.97 lb(US) (7.244 kg)
Warranty: 18 months
