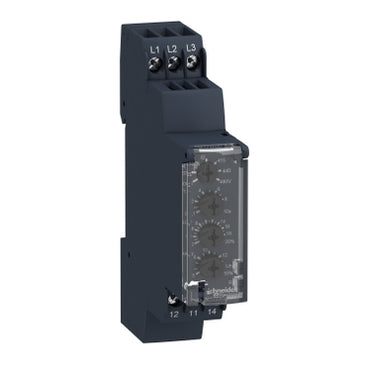

Voltage Control Relay RM17-U - Range 65..260 VAC
This Harmony RM17-U control relay allows monitoring of voltage control in single phase network. This modular control relay is ideal for monitoring of electrical values and voltage variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0Specifications
- Range of Product
- Harmony Control Relays
- Product or Component Type
- Voltage control relay
- Relay Type
- Voltage control relay
- Product Specific Application
- For single-phase and DC supply
- relay name
- RM17UAS
- relay monitored parameters
- Overvoltage or undervoltage detection;Self-powered
- time delay
- Adjustable 0.1...10 s;0 + 10 % on crossing the threshold
- switching capacity in VA
- 1250 VA
- minimum switching current
- 10 mA 5 V DC
- maximum switching current
- 5 A AC/DC
- power consumption in VA
- 0…3 VA AC
- measurement range
- 65...260 V voltage AC 50/60 Hz;65...260 V voltage DC
- utilisation category
- AC-12 IEC 60947-5-1;AC-13 IEC 60947-5-1;AC-14 IEC 60947-5-1;AC-15 IEC 60947-5-1;DC-12 IEC 60947-5-1;DC-13 IEC 60947-5-1;DC-14 IEC 60947-5-1
- contacts type and composition
- 1 C/O
- reset time
- 1500 ms time delay
- maximum switching voltage
- 250 V AC/DC
- [Us] Rated Supply Voltage
- 110...240 V AC/DC 50/60 Hz +/- 10 %
- supply voltage limits
- 50…270 V AC/DC
- maximum power consumption in W
- 1 W DC
- immunity to microbreaks
- 20 ms
- control circuit frequency
- 50...60 Hz +/- 10 %
- output contacts
- 1 C/O
- nominal output current
- 5 A
- maximum measuring cycle
- 150 ms measurement cycle as true rms value
- hysteresis
- 5…20 % threshold setting
- delay at power up
- 1000 ms DC;500 ms AC
- measurement accuracy
- +/- 10 % of the full scale value
- repeat accuracy
- +/- 0.5 % input and measurement circuit;+/- 1 % time delay
- measurement error
- < 1 % over the whole range with voltage variation;0.2 %/°C with temperature variation
- polarity
- Non reversible polarity on DC supply
- quality labels
- CE
- overvoltage category
- III IEC 60664-1
- insulation resistance
- > 500 MOhm 500 V DC IEC 60255-5;> 500 MOhm 500 V DC IEC 60664-1
- [Ui] rated insulation voltage
- 250 V IEC 60664-1;400 V IEC 60664-1
- operating position
- Any position without derating
- connections - terminals
- Screw terminals;1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end;Screw terminals;2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end;Screw terminals;1 x 0.2...2 x 2.5 mm² AWG 24...AWG 12) flexible with cable end;Screw terminals;2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
- tightening torque
- 5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
- housing material
- Self-extinguishing plastic
- local signalling
- for power ON LED (green);for relay ON LED (yellow)
- mounting support
- 35 mm symmetrical DIN rail conforming to EN/IEC 60715
- electrical durability
- 100000 cycles
- mechanical durability
- 30000000 cycles
- operating rate
- <= 360 operations/hour full load
- Width
- 0.69 in (17.5 mm)
- Net Weight
- 0.18 lb(US) (0.08 kg)
- compatibility code
- RM17
- electromagnetic compatibility
- Emission standard for industrial environments EN/IEC 61000-6-4;Emission standard for residential;commercial and light-industrial environments EN/IEC 61000-6-3;Immunity for industrial environments NF EN/IEC 61000-6-2
- Standards
- EN/IEC 60255-6
- Product Certifications
- GL;UL;GOST;CSA;C-tick
- Directives
- 89/336/EEC - electromagnetic compatibility;73/23/EEC - low voltage directive
- Ambient Air Temperature for Storage
- -40…158 °F (-40…70 °C)
- ambient air temperature for operation
- -4…122 °F (-20…50 °C)
- relative humidity
- 95 % 131 °F (55 °C) IEC 60068-2-30
- vibration resistance
- 0.35 mm 5…57.6 Hz)IEC 60068-2-6;1 gn 57.6…150 Hz)IEC 60255-21-1
- shock resistance
- 5 gn IEC 60068-2-27
- IP degree of protection
- IP20 IEC 60529 terminals);IP30 IEC 60529 casing)
- pollution degree
- 3 IEC 60664-1
- dielectric test voltage
- 2 kV AC 50 Hz;1 min IEC 60255-5;2 kV AC 50 Hz;1 min IEC 60664-1
- non-dissipating shock wave
- 4 kV IEC 60255-5;4 kV IEC 60664-1;4 kV IEC 61000-4-5
- Category
- 22380-RELAYS-MEASUREMENT (RM17-RM35)
- Discount Schedule
- CP2
- GTIN
- 3389119405126
- Returnability
- Yes
- Country of origin
- ID
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.02 in (2.6 cm)
- Package 1 Width
- 3.15 in (8.0 cm)
- Package 1 Length
- 3.70 in (9.4 cm)
- Package 1 Weight
- 3.17 oz (90.0 g)
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 48
- Package 2 Height
- 5.91 in (15.0 cm)
- Package 2 Width
- 11.81 in (30.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 10.60 lb(US) (4.809 kg)
- Warranty
- 18 months
