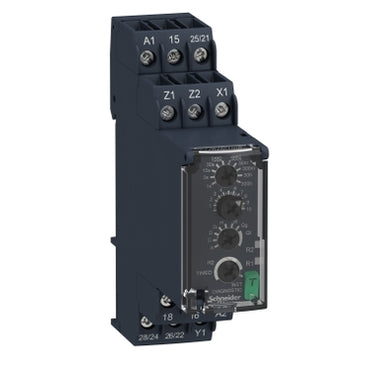

RE22R2MYMR | Zelio Modular Timing Relay, 0.5s - 300h, 24V AC, 4 C/O, 8A, IP50 | Square D by Schneider Electric

Brand: Square DSKU: RE22R2MYMR

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RE22R2MYMR

Jump to: Overview & Specifications Reviews

Overview Details for RE22R2MYMR

Zelio Modular Timing Relay, 0.5s - 300h, 24V AC, 4 C/O, 8A, IP50

Zelio Modular Timing Relay

Time Delay Range: 0.5s - 300h
Rated Supply Voltage: 24-240V AC 50/60 Hz
Contacts Type and Composition: 1 C/O timed or instantaneous contact, cadmium free, 2 C/O timed contact, cadmium free
Rated Current: 8A AC
Degree of Protection: IP50 conforming to IEC 60529

This Harmony RE22 timing relay can be set between 0.05 seconds and 300 hours, has an output rating of 8A, is 22.5mm wide and can be supplied with 24V to 240V AC. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail. It also offers a sealable cover, simple and precise settings with rotary trimmers. multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. Diagnostic button allows simple setup and trouble shooting by non-specialists. 0 0 0 0 0 0 0 0 0 0 0 0 0

Specifications

Range of Product: Harmony Timer Relays
Product or Component Type: Multifunction relay
discrete output type: Relay
device short name: RE22
nominal output current: 8 A
contacts type and composition: 1 C/O timed or instantaneous contact;cadmium free;2 C/O timed contact;cadmium free
time delay type: Power on-delay;Off-delay;Symmetrical flashing;Interval;Star-delta
time delay range: 3...30 min;30...300 min;0.3...3 s;3...30 h;10...100 s;1...10 s;0.05...1 s;30...300 s;30...300 h;3...30 s
control type: Rotary knob;Diagnostic button;Potentiometer external
[Us] rated supply voltage: 24...240 V AC/DC 50/60 Hz
Release input voltage: <= 2.4 V
voltage range: 0.85...1.1 Us
supply frequency: 50...60 Hz +/- 5 %
connections - terminals: Screw terminals;1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end;Screw terminals;2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end;Screw terminals;1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end;Screw terminals;2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
tightening torque: 5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
housing material: Self-extinguishing
repeat accuracy: +/- 0.5 % IEC 61812-1
Temperature Drift: +/- 0.05 %/°C
voltage drift: +/- 0.2 %/V
setting accuracy of time delay: +/- 10 % of full scale 25 °C IEC 61812-1
Control signal pulse width: 100 ms with load in parallel;30 ms
insulation resistance: 100 MOhm 500 V DC IEC 60664-1
Recovery time: 120 ms on de-energisation
immunity to microbreaks: 10 ms
power consumption in VA: 3 VA 240 V AC
power consumption in W: 1.5 W 240 V DC
switching capacity in VA: 2000 VA
minimum switching current: 10 mA 5 V DC
maximum switching current: 8 A
maximum switching voltage: 250 V AC
electrical durability: 100000 cycles;8 A at 250 V;AC-1;100000 cycles;2 A at 24 V;DC-1
mechanical durability: 10000000 cycles
Rated impulse withstand voltage: 5 kV 1.2…50 µs IEC 60664-1
Power on delay: 100 ms
creepage distance: 4 kV/3 IEC 60664-1
overvoltage category: III IEC 60664-1
safety reliability data: B10d = 160000;MTTFd = 171.2 years
mounting position: Any position
mounting support: 35 mm DIN rail conforming to EN/IEC 60715
status LED: Green LED backlight steady)dial pointer indication;Yellow LED steady)output relay energised;Yellow LED fast flashing)timing in progress and output relay de-energised;Yellow LED slow flashing)timing in progress and output relay energised
function available: A- Power on-delay relay-2 C/O;At- Power on-delay relay w/ pause/summation (X1)-2 C/O;Aw- Power on-delay relay w/ retrigger/restart-2 C/O;C- Off-delay relay w/ control signal-2 C/O;Ct- Off-delay relay w/ control signal and pause/summation-2 C/O;D- Symmetrical flashing relay (starting pulse-off)-2 C/O;Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (X1)-2 C/O;Dw- Symmetrical flashing relay (starting pulse-off) w/ retrigger/restart-2 C/O;Di- Symmetrical flashing relay (starting pulse-on)-2 C/O;Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (X1)-2 C/O;Diw- Symmetrical flashing relay (starting pulse-on) w/ retrigger/restart-2 C/O;H- Interval relay-2 C/O;Ht- Interval relay w/ pause/summation (X1)-2 C/O;Hw- Interval relay w/ retrigger/restart-2 C/O;Qg- Star-delta relay (2 CO outputs w/ same common)-2 C/O;Qgt- Star-delta relay (2 CO outputs w/ same common) w/ pause/summation-2 C/O;Qt- Star-delta relay (2 CO outputs w/ split common)-2 C/O;Qtt- Star-delta relay (2 CO outputs w/ split common) w/ pause/summation (X1)-2 C/O;W- Interval relay w/ control signal off-2 C/O;Wt- Interval relay w/ control signal off and pause/summation-2 C/O
Width: 0.89 in (22.5 mm)
Net Weight: 0.23 lb(US) (0.105 kg)
dielectric strength: 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
Standards: UL 508;IEC 61812-1
Directives: 2004/108/EC - electromagnetic compatibility;2006/95/EC - low voltage directive
Product Certifications: RCM;CE;EAC;CSA;CCC;UL;GL
Ambient Air Temperature for Operation: -4…140 °F (-20…60 °C)
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
IP degree of protection: Housing IP40 IEC 60529;Terminals IP20 IEC 60529;Front panel IP50 IEC 60529
pollution degree: 3 IEC 60664-1
vibration resistance: 20 m/s² 10…150 Hz)IEC 60068-2-6
shock resistance: 15 gn not operating 11 ms IEC 60068-2-27;5 gn in operation 11 ms IEC 60068-2-27
relative humidity: 95 % 77…131 °F (25…55 °C)
electromagnetic compatibility: Fast transients immunity test 1 kV capacitive connecting clip)level 3 IEC 61000-4-4;Surge immunity test 1 kV differential mode)level 3 IEC 61000-4-5;Surge immunity test 2 kV common mode)level 3 IEC 61000-4-5;Electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2;Electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2;Radiated radio-frequency electromagnetic field immunity test 10 V/m 80 MHz...1 GHz)level 3 IEC 61000-4-3;Conducted RF disturbances 10 V 0.15...80 MHz)level 3 IEC 61000-4-6;Fast transient bursts 2 kV direct contact)level 3 IEC 61000-4-4;Immunity to microbreaks and voltage drops 30 % 500 ms) IEC 61000-4-11;Immunity to microbreaks and voltage drops 100 % 20 ms) IEC 61000-4-11
Category: 22376-RELAYS-MEASUREMENT(RM4)
Discount Schedule: CP2
GTIN: 00785901330288
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.02 in (2.6 cm)
Package 1 Width: 3.23 in (8.2 cm)
Package 1 Length: 3.74 in (9.5 cm)
Package 1 Weight: 4.09 oz (116.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 40
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 11.36 lb(US) (5.153 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 640
Package 3 Height: 29.53 in (75.0 cm)
Package 3 Width: 23.62 in (60.0 cm)
Package 3 Length: 31.50 in (80.0 cm)
Package 3 Weight: 163.67 lb(US) (74.24 kg)
