RE17RMEMU | Zelio Time Delay Relay, 8 Functions, 8A, 12-240V AC 50/60Hz, 24V DC, 1s-100h | Square D by Schneider Electric

Brand: Square DSKU: RE17RMEMU

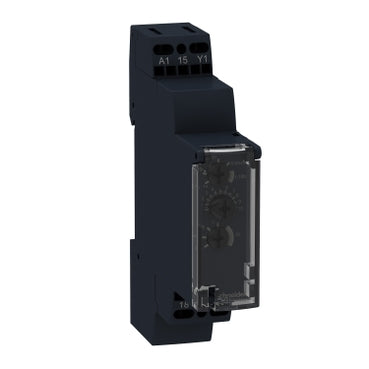

Square D | RE17RMEMU
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to RE17RMEMU
Jump to: Overview & Specifications Reviews

Overview Details for RE17RMEMU

Zelio Time Delay Relay, 8 Functions, 8A, 12-240V AC 50/60Hz, 24V DC, 1s-100h

Zelio Time Delay Relay
  • 8 Functions
  • Nominal Output Current: 8A
  • Contacts Type and Composition: 1 C/O
  • Rated Supply Voltage: 12-240V AC/DC 50/60Hz, 24V DC
  • Time Delay Range: 1s-100h
  • Connections-Terminals: Screw terminals
  • Degree of Protection: IP20 (terminal block), IP40 (housing), IP50 (front panel) conforming to IEC 60529 This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24V DC, 24V to 240V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

    • Specifications

    Range of Product
    Harmony Timer Relays
    Product or Component Type
    Multifunction relay
    discrete output type
    Relay
    Width
    0.69 in (17.5 mm)
    device short name
    RE17R
    time delay type
    Power on-delay;Interval;Off-delay;Symmetrical flashing
    time delay range
    6...60 min;1...10 min;1...10 s;1...10 h;6...60 s;0.1...1 s
    nominal output current
    8 A
    contacts type and composition
    1 C/O
    contacts material
    Cadmium free
    Height
    3.54 in (90 mm)
    Depth
    2.83 in (72 mm)
    control type
    Selector switch front panel
    [Us] rated supply voltage
    24...240 V AC 50/60 Hz;24 V DC
    voltage range
    0.85...1.1 Us
    supply frequency
    50...60 Hz +/- 5 %
    release of input voltage
    10 V
    connections - terminals
    Screw terminals;1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end;Screw terminals;2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end;Screw terminals;1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end;Screw terminals;2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
    tightening torque
    5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
    housing material
    Self-extinguishing
    repeat accuracy
    +/- 0.5 % IEC 61812-1
    Temperature Drift
    +/- 0.05 %/°C
    voltage drift
    +/- 0.2 %/V
    setting accuracy of time delay
    +/- 10 % of full scale 25 °C IEC 61812-1
    control signal pulse width
    100 ms with load in parallel typical;30 ms typical
    insulation resistance
    100 MOhm 500 V DC IEC 60664-1
    reset time
    120 ms on de-energisation typical
    on-load factor
    100 %
    power consumption in VA
    0…32 VA 240 V AC
    maximum power consumption in W
    0.6 W 24 V DC
    minimum switching current
    10 mA 5 V DC
    maximum switching current
    8 A AC/DC
    maximum switching voltage
    250 V AC
    breaking capacity
    2000 VA
    operating frequency
    10 Hz
    electrical durability
    100000 cycles resistive 8 A 250 V AC
    mechanical durability
    10000000 cycles
    dielectric strength
    2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
    [Uimp] rated impulse withstand voltage
    5 kV 1.2/50 µs
    power on delay
    100 ms
    Marking
    CE
    creepage distance
    4 kV/3 IEC 60664-1
    safety reliability data
    MTTFd = 296.8 years;B10d = 270000
    mounting position
    Any position in relation to normal vertical mounting plane
    mounting support
    35 mm DIN rail conforming to EN/IEC 60715
    local signalling
    LED indicator on steady: relay energised;no timing in progress;LED indicator 80 % ON and 20 % OFF flashing: timing in progress;LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised;no timing in progress (except function Di-D;Li-L)
    Net Weight
    0.15 lb(US) (0.07 kg)
    time delay type
    A;At;B;C;D;Di;H;Ht
    functionality
    Multifunction
    compatibility code
    RE17
    immunity to microbreaks
    20 ms
    Standards
    2004/108/EC;EN 61000-6-2;EN 61000-6-3;EN 61000-6-1;2006/95/EC;IEC 61812-1;EN 61000-6-4
    Product Certifications
    CSA;cULus
    Ambient Air Temperature for Storage
    -22…140 °F (-30…60 °C)
    Ambient air temperature for operation
    -4…140 °F (-20…60 °C)
    IP degree of protection
    IP20 IEC 60529 terminal block);IP40 IEC 60529 housing);IP50 IEC 60529 front panel)
    vibration resistance
    20 m/s² 10…150 Hz)IEC 60068-2-6
    shock resistance
    15 gn 11 ms IEC 60068-2-27
    Relative Humidity
    93 % without condensation IEC 60068-2-30
    electromagnetic compatibility
    Electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2;Electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2;Susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3;Electrical fast transient/burst immunity test 1 kV capacitive connecting clip) level 3 IEC 61000-4-4;Electrical fast transient/burst immunity test 2 kV direct) level 3 IEC 61000-4-4;1.2/50 µs shock waves immunity test 1 kV differential mode) level 3 IEC 61000-4-5;1.2/50 µs shock waves immunity test 2 kV common mode) level 3 IEC 61000-4-5;Conducted RF disturbances 10 V 0.15...80 MHz) level 3 IEC 61000-4-6;Voltage dips and interruptions immunity test 0 % 1 cycle) IEC 61000-4-11;Voltage dips and interruptions immunity test 70 % 25/30 cycles) IEC 61000-4-11;Conducted and radiated emissionsclass B EN 55022
    Category
    22370-RE;RM MISC TIMERS & COUNTERS
    Discount Schedule
    CP2
    GTIN
    3606480552731
    Returnability
    Yes
    Country of origin
    ID
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Height
    1.10 in (2.8 cm)
    Package 1 Width
    3.07 in (7.8 cm)
    Package 1 Length
    3.78 in (9.6 cm)
    Package 1 Weight
    2.86 oz (81.0 g)
    Unit Type of Package 2
    S02
    Number of Units in Package 2
    40
    Package 2 Height
    5.91 in (15.0 cm)
    Package 2 Width
    11.81 in (30.0 cm)
    Package 2 Length
    15.75 in (40.0 cm)
    Package 2 Weight
    8.25 lb(US) (3.74 kg)
