QOU360 | QO Miniature Circuit Breaker, 60A, 3-Pole, 240V AC, 48V DC, 10kA, Unit Mount | Square D by Schneider Electric

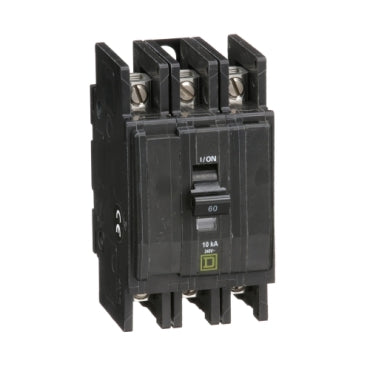

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QOU360

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Square D QOU360 Documents

Datasheet More Info

Overview

Details for QOU360

QO Miniature Circuit Breaker, 60A, 3-Pole, 240V AC, 48V DC, 10kA, Unit Mount

QO Miniature Circuit Breaker

Line Rated Current: 60A
Poles Description: 3-Pole
System Voltage: 240V AC, 48V DC
Breaking Capacity: 5 kA at: 48 V DC, 10 kA at: 240 V AC
Mounting Mode: Unit mount
Circuit Breaker Type: Standard
Electrical Connection: Slotted box lugs, line side, Slotted box lugs, load side

QO™ and QOU Miniature Circuit Breakers, QOU360, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers provide a means to manually open a circuit.

Specifications

Product or Component Type: Miniature circuit-breaker
Range of Product: QOU
circuit breaker type: Standard
circuit breaker application: HACR rated
Line Rated Current: 60 A
electrical connection: Slotted box lugs;line side;Slotted box lugs;load side
[Ue] rated operational voltage: 120/240 V AC;240 V AC;120 V AC;48 V DC
Mounting Mode: Unit mount
AWG gauge: AWG 14...AWG 2 aluminium/copper
Height: 4.05 in (102.87 mm)
Width: 2.25 in (57.15 mm)
Depth: 2.95 in (74.93 mm)
tightening torque: 45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
Product Certifications: IEC;CSA;UL Listed
Category: 00900-QOU BREAKERS & SWITCH
Discount Schedule: DE2
GTIN: 785901060291
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.60 in (9.144 cm)
Package 1 Width: 4.70 in (11.938 cm)
Package 1 Length: 2.60 in (6.604 cm)
Package 1 Weight: 18.40 oz (521.631 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 20
Package 2 Height: 3.50 in (8.89 cm)
Package 2 Width: 13.50 in (34.29 cm)
Package 2 Length: 20.40 in (51.816 cm)
Package 2 Weight: 23.20 lb(US) (10.523 kg)
Warranty: 18 months
