QO2175SB | LOAD CENTER QO SECONDARY SURGE ARRESTOR | Square D by Schneider Electric

Brand: Square DSKU: QO2175SB
Square D | QO2175SB

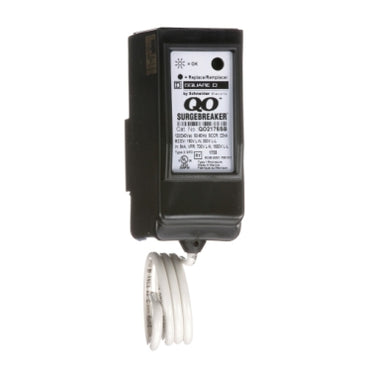

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO2175SB
Jump to: Overview & Specifications Reviews

Overview Details for QO2175SB

LOAD CENTER QO SECONDARY SURGE ARRESTOR

LOAD CENTER QO SECONDARY SURGE ARRESTOR
  • Single and three phase
  • 30 to 400 amps 2 to 42 circuits
  • Indoor and outdoor versions
  • Separate flush or surface mount covers
  • Full complement of accessories
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. This Surgebreaker is a secondary surge arrestor for QO load centers. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 120/240 VAC single phase systems. Surgebreaker has a NEMA 1 indoor rating. This secondary surge protector is rated at 5 kA and has a SCCR of 22.5 kA. It has a plug on design and requires two pole positions. The LED indicator indicates operational status. The QO Surgebreaker is CSA certified ans UL listed

Specifications

Product
Surge protection device
Range
Surge Breaker;QO
Surge Current
22.5 kA
Voltage Rating
120/240 V AC
Number of Phases
1 phase
Wiring Configuration
3-wire
MCOV
150 V;300 V
SCCR
22 kA
Local Signalling
1 LED green normal operation
product destination
Load center QO
Height
3.7 in (93.98 mm)
Width
1.5 in (38.10 mm)
Depth
2.6 in (66.04 mm)
Enclosure Rating
NEMA 2
Ambient Operating
149 °F (65 °C)
Category
08461-SURGE PROTECTION RESI
Discount Schedule
DE1B
GTIN
785901210894
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
1.70 in (4.318 cm)
Package 1 Width
3.00 in (7.62 cm)
Package 1 Length
5.50 in (13.97 cm)
Package 1 Weight
10.40 oz (294.835 g)
Unit Type of Package 2
CAR
Number of Units in Package 2
20
Package 2 Height
6.10 in (15.494 cm)
Package 2 Width
6.60 in (16.764 cm)
Package 2 Length
16.70 in (42.418 cm)
Package 2 Weight
13.07 lb(US) (5.928 kg)
Warranty
18 months
